Page 341 - Carbide drills I Thread cutting tools 2023

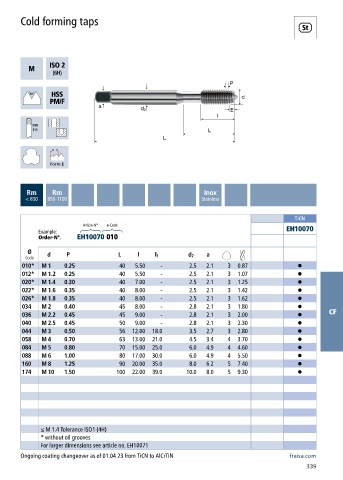

Cold forming taps

Rm Rm Inox
< 850 850-1100 Stainless

TiCN
Article-N°. ø-Code
Example: EH10070
Order-N°. EH10070 010
Ø
Code d P L l l 1 d 2 a
010* M 1 0.25 40 5.50 - 2.5 2.1 3 0.87 •
012* M 1.2 0.25 40 5.50 - 2.5 2.1 3 1.07 •
020* M 1.4 0.30 40 7.00 - 2.5 2.1 3 1.25 •
022* M 1.6 0.35 40 8.00 - 2.5 2.1 3 1.42 •
026* M 1.8 0.35 40 8.00 - 2.5 2.1 3 1.62 •
034 M 2 0.40 45 8.00 - 2.8 2.1 3 1.80 •
036 M 2.2 0.45 45 9.00 - 2.8 2.1 3 2.00 • CF
040 M 2.5 0.45 50 9.00 - 2.8 2.1 3 2.30 •
044 M 3 0.50 56 12.00 18.0 3.5 2.7 3 2.80 •
058 M 4 0.70 63 13.00 21.0 4.5 3.4 4 3.70 •
084 M 5 0.80 70 15.00 25.0 6.0 4.9 4 4.60 •
088 M 6 1.00 80 17.00 30.0 6.0 4.9 4 5.50 •
160 M 8 1.25 90 20.00 35.0 8.0 6.2 5 7.40 •
174 M 10 1.50 100 22.00 39.0 10.0 8.0 5 9.30 •

≤ M 1.4 Tolerance ISO1 (4H)
* without oil grooves
For larger dimensions see article no. EH10071
Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
339
