Page 345 - Carbide drills I Thread cutting tools 2023
P. 345

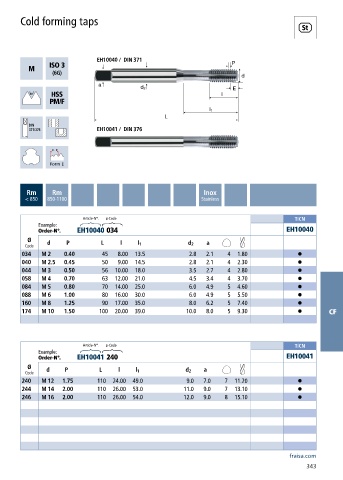

Cold forming taps
EH10040 / DIN 371
EH10041 / DIN 376
Rm Rm Inox
< 850 850-1100 Stainless
Article-N°. ø-Code TiCN
Example:
Order-N°. EH10040 034 EH10040
Ø
Code d P L l l 1 d 2 a
034 M 2 0.40 45 8.00 13.5 2.8 2.1 4 1.80 •
040 M 2.5 0.45 50 9.00 14.5 2.8 2.1 4 2.30 •
044 M 3 0.50 56 10.00 18.0 3.5 2.7 4 2.80 •
058 M 4 0.70 63 12.00 21.0 4.5 3.4 4 3.70 •
084 M 5 0.80 70 14.00 25.0 6.0 4.9 5 4.60 •
088 M 6 1.00 80 16.00 30.0 6.0 4.9 5 5.50 •
160 M 8 1.25 90 17.00 35.0 8.0 6.2 5 7.40 •
174 M 10 1.50 100 20.00 39.0 10.0 8.0 5 9.30 • CF
Article-N°. ø-Code TiCN
Example:
Order-N°. EH10041 240 EH10041
Ø
Code d P L l l 1 d 2 a
240 M 12 1.75 110 24.00 49.0 9.0 7.0 7 11.20 •
244 M 14 2.00 110 26.00 53.0 11.0 9.0 7 13.10 •
246 M 16 2.00 110 26.00 54.0 12.0 9.0 8 15.10 •
fraisa.com
343
