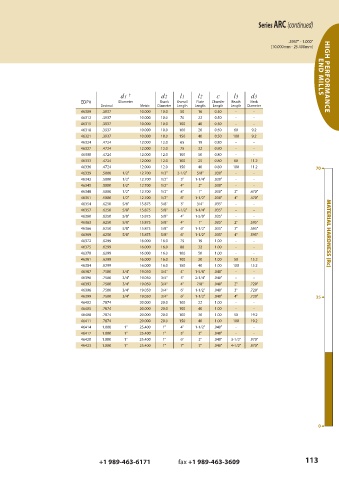

Page 113 - GARR_TOOL(CATALOG_INT)

Series ARC (continued)

.3937" - 1.000"
(10.000mm - 25.400mm)

d1 † d2 l1 l2 c l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Chamfer Reach Neck
Decimal Metric Diameter Length Length Length Length Diameter
46309 .3937 10.000 10.0 50 16 0.50 - -
46312 .3937 10.000 10.0 70 22 0.50 - -
46315 .3937 10.000 10.0 100 40 0.50 - -
46318 .3937 10.000 10.0 100 20 0.50 60 9.2
46321 .3937 10.000 10.0 150 40 0.50 100 9.2
46324 .4724 12.000 12.0 65 19 0.80 - -
46327 .4724 12.000 12.0 75 32 0.80 - -
46330 .4724 12.000 12.0 100 50 0.80 - -
46333 .4724 12.000 12.0 100 25 0.80 60 11.2
46336 .4724 12.000 12.0 150 40 0.80 100 11.2 70 6
46339 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .030" - -
46342 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030" - -
46345 .5000 1/2" 12.700 1/2" 4" 2" .030" - -
46348 .5000 1/2" 12.700 1/2" 4" 1" .030" 2" .470"
46351 .5000 1/2" 12.700 1/2" 6" 1-1/2" .030" 4" .470"
46354 .6250 5/8" 15.875 5/8" 3" 3/4" .035" - -
46357 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .035" - -
46360 .6250 5/8" 15.875 5/8" 4" 1-5/8" .035" - -
46363 .6250 5/8" 15.875 5/8" 4" 1" .035" 2" .595"
46366 .6250 5/8" 15.875 5/8" 6" 1-1/2" .035" 3" .595"
46369 .6250 5/8" 15.875 5/8" 6" 1-1/2" .035" 4" .595" MATERIAL HARDNESS (Rc)
46372 .6299 16.000 16.0 75 19 1.00 - -
46375 .6299 16.000 16.0 88 32 1.00 - -
46378 .6299 16.000 16.0 100 50 1.00 - -
46381 .6299 16.000 16.0 100 20 1.00 50 15.2
46384 .6299 16.000 16.0 150 40 1.00 100 15.2
46387 .7500 3/4" 19.050 3/4" 4" 1-5/8" .040" - -
MATERIAL HARDNESS (Rc)
46390 .7500 3/4" 19.050 3/4" 5" 2-1/4" .040" - -
46393 .7500 3/4" 19.050 3/4" 4" 7/8" .040" 2" .720"
46396 .7500 3/4" 19.050 3/4" 6" 1-1/2" .040" 3" .720"
46399 .7500 3/4" 19.050 3/4" 6" 1-1/2" .040" 4" .720" 35 6
46402 .7874 20.000 20.0 100 22 1.00 - -
46405 .7874 20.000 20.0 100 40 1.00 - -
46408 .7874 20.000 20.0 100 30 1.00 50 19.2
46411 .7874 20.000 20.0 150 40 1.00 100 19.2
46414 1.000 1" 25.400 1" 4" 1-1/2" .040" - -
46417 1.000 1" 25.400 1" 5" 2" .040" - -
46420 1.000 1" 25.400 1" 6" 2" .040" 3-1/2" .970"
46423 1.000 1" 25.400 1" 7" 2" .040" 4-1/2" .970"

0 6
