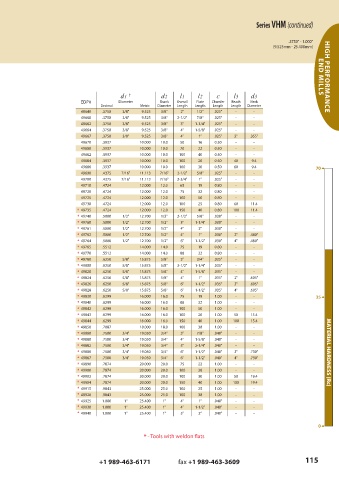

Page 115 - GARR_TOOL(CATALOG_INT)
P. 115
Series VHM (continued)
.3750" - 1.000"
(9.525mm - 25.400mm)
d1 † d2 l1 l2 c l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Chamfer Reach Neck
Decimal Metric Diameter Length Length Length Length Diameter
49640 .3750 3/8" 9.525 3/8" 2" 1/2" .025" - -
49660 .3750 3/8" 9.525 3/8" 2-1/2" 7/8" .025" - -
49662 .3750 3/8" 9.525 3/8" 3" 1-1/4" .025" - -
49664 .3750 3/8" 9.525 3/8" 4" 1-5/8" .025" - -
49667 .3750 3/8" 9.525 3/8" 4" 1" .025" 2" .355"
49670 .3937 10.000 10.0 50 16 0.50 - -
49680 .3937 10.000 10.0 70 22 0.50 - -
49682 .3937 10.000 10.0 100 40 0.50 - -
49684 .3937 10.000 10.0 100 20 0.50 40 9.4
49686 .3937 10.000 10.0 100 30 0.50 60 9.4 70 6
49690 .4375 7/16" 11.113 7/16" 2-1/2" 5/8" .025" - -
49700 .4375 7/16" 11.113 7/16" 2-3/4" 1" .025" - -
49710 .4724 12.000 12.0 65 19 0.80 - -
49720 .4724 12.000 12.0 75 32 0.80 - -
49725 .4724 12.000 12.0 100 50 0.80 - -
49730 .4724 12.000 12.0 100 25 0.80 60 11.4
* 49735 .4724 12.000 12.0 150 40 0.80 100 11.4
* 49740 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .030" - -
* 49760 .5000 1/2" 12.700 1/2" 3" 1-1/4" .030" - -
* 49761 .5000 1/2" 12.700 1/2" 4" 2" .030" - -
* 49762 .5000 1/2" 12.700 1/2" 4" 1" .030" 2" .480"
* 49764 .5000 1/2" 12.700 1/2" 6" 1-1/2" .030" 4" .480"
* 49765 .5512 14.000 14.0 75 19 0.80 - -
* 49770 .5512 14.000 14.0 88 32 0.80 - -
* 49780 .6250 5/8" 15.875 5/8" 3" 3/4" .035" - -
* 49800 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4" .035" - -
* 49820 .6250 5/8" 15.875 5/8" 4" 1-5/8" .035" - -
* 49824 .6250 5/8" 15.875 5/8" 4" 1" .035" 2" .605"
* 49826 .6250 5/8" 15.875 5/8" 6" 1-1/2" .035" 3" .605"
* 49828 .6250 5/8" 15.875 5/8" 6" 1-1/2" .035" 4" .605"
* 49830 .6299 16.000 16.0 75 19 1.00 - - 35 6
* 49840 .6299 16.000 16.0 88 32 1.00 - -
* 49842 .6299 16.000 16.0 100 50 1.00 - -
* 49843 .6299 16.000 16.0 100 20 1.00 50 15.4
* 49844 .6299 16.000 16.0 150 40 1.00 100 15.4
* 49850 .7087 18.000 18.0 100 38 1.00 - -
* 49860 .7500 3/4" 19.050 3/4" 3" 7/8" .040" - -
* 49880 .7500 3/4" 19.050 3/4" 4" 1-5/8" .040" - -
* 49882 .7500 3/4" 19.050 3/4" 5" 2-1/4" .040" - -
* 49886 .7500 3/4" 19.050 3/4" 6" 1-1/2" .040" 3" .730" MATERIAL HARDNESS (Rc)
* 49887 .7500 3/4" 19.050 3/4" 6" 1-1/2" .040" 4" .730"
* 49890 .7874 20.000 20.0 75 22 1.00 - -
* 49900 .7874 20.000 20.0 100 38 1.00 - -
* 49902 .7874 20.000 20.0 100 30 1.00 50 19.4
* 49904 .7874 20.000 20.0 150 40 1.00 100 19.4
* 49915 .9843 25.000 25.0 100 25 1.00 - -
* 49920 .9843 25.000 25.0 100 38 1.00 - -
* 49925 1.000 1" 25.400 1" 4" 1" .040" - -
* 49930 1.000 1" 25.400 1" 4" 1-1/2" .040" - -
* 49940 1.000 1" 25.400 1" 5" 2“ .040" - -
0 6
* - Tools with weldon flats
+1 989-463-6171 fax +1 989-463-3609 115
