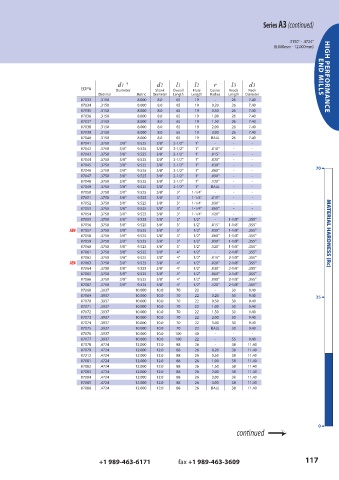

Page 117 - GARR_TOOL(CATALOG_INT)

Series A3 (continued)

.3150" - .4724"
(8.000mm - 12.000mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
Decimal Metric Diameter Length Length Radius Length Diameter
07033 .3150 8.000 8.0 65 19 - 26 7.40
07034 .3150 8.000 8.0 65 19 0.20 26 7.40
07035 .3150 8.000 8.0 65 19 0.50 26 7.40
07036 .3150 8.000 8.0 65 19 1.00 26 7.40
07037 .3150 8.000 8.0 65 19 1.50 26 7.40
07038 .3150 8.000 8.0 65 19 2.00 26 7.40
07039 .3150 8.000 8.0 65 19 3.00 26 7.40
07040 .3150 8.000 8.0 65 19 BALL 26 7.40
07041 .3750 3/8" 9.525 3/8" 2-1/2" 1" - - -
07042 .3750 3/8" 9.525 3/8" 2-1/2" 1" .010" - -
07043 .3750 3/8" 9.525 3/8" 2-1/2" 1" .015" - -
07044 .3750 3/8" 9.525 3/8" 2-1/2" 1" .020" - -
07045 .3750 3/8" 9.525 3/8" 2-1/2" 1" .030" - -
07046 .3750 3/8" 9.525 3/8" 2-1/2" 1" .060" - - 70 6
07047 .3750 3/8" 9.525 3/8" 2-1/2" 1" .090" - -
07048 .3750 3/8" 9.525 3/8" 2-1/2" 1" .120" - -
07049 .3750 3/8" 9.525 3/8" 2-1/2" 1" BALL - -
07050 .3750 3/8" 9.525 3/8" 3" 1-1/4" - - -
07051 .3750 3/8" 9.525 3/8" 3" 1-1/4" .015" - -
07052 .3750 3/8" 9.525 3/8" 3" 1-1/4" .030" - -
07053 .3750 3/8" 9.525 3/8" 3" 1-1/4" .060" - -
07054 .3750 3/8" 9.525 3/8" 3" 1-1/4" .120" - -
07055 .3750 3/8" 9.525 3/8" 3" 1/2" - 1-1/8" .355"
07056 .3750 3/8" 9.525 3/8" 3" 1/2" .015" 1-1/8" .355"
NEW 07057 .3750 3/8" 9.525 3/8" 3" 1/2" .030" 1-1/8" .355"
07058 .3750 3/8" 9.525 3/8" 3" 1/2" .060" 1-1/8" .355" MATERIAL HARDNESS (Rc)
07059 .3750 3/8" 9.525 3/8" 3" 1/2" .090" 1-1/8" .355"
07060 .3750 3/8" 9.525 3/8" 3" 1/2" .120" 1-1/8" .355"
07061 .3750 3/8" 9.525 3/8" 4" 1/2" - 2-1/8" .355"
07062 .3750 3/8" 9.525 3/8" 4" 1/2" .015" 2-1/8" .355"
NEW 07063 .3750 3/8" 9.525 3/8" 4" 1/2" .020" 2-1/8" .355"
07064 .3750 3/8" 9.525 3/8" 4" 1/2" .030" 2-1/8" .355"
07065 .3750 3/8" 9.525 3/8" 4" 1/2" .060" 2-1/8" .355"
07066 .3750 3/8" 9.525 3/8" 4" 1/2" .090" 2-1/8" .355"
07067 .3750 3/8" 9.525 3/8" 4" 1/2" .120" 2-1/8" .355"
07068 .3937 10.000 10.0 70 22 - 30 9.40
07069 .3937 10.000 10.0 70 22 0.20 30 9.40 35 6
07070 .3937 10.000 10.0 70 22 0.50 30 9.40
07071 .3937 10.000 10.0 70 22 1.00 30 9.40
07072 .3937 10.000 10.0 70 22 1.50 30 9.40
07073 .3937 10.000 10.0 70 22 2.00 30 9.40
07074 .3937 10.000 10.0 70 22 3.00 30 9.40
07075 .3937 10.000 10.0 70 22 BALL 30 9.40
07076 .3937 10.000 10.0 100 40 - - -
07077 .3937 10.000 10.0 100 22 - 55 9.40
07078 .4724 12.000 12.0 88 26 - 38 11.40
07079 .4724 12.000 12.0 88 26 0.20 38 11.40
07212 .4724 12.000 12.0 88 26 0.50 38 11.40
07081 .4724 12.000 12.0 88 26 1.00 38 11.40
07082 .4724 12.000 12.0 88 26 1.50 38 11.40
07083 .4724 12.000 12.0 88 26 2.00 38 11.40
07084 .4724 12.000 12.0 88 26 3.00 38 11.40
07085 .4724 12.000 12.0 88 26 4.00 38 11.40
07086 .4724 12.000 12.0 88 26 BALL 38 11.40

0 6
continued ?
