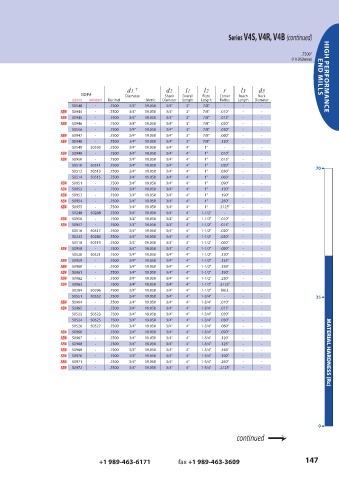

Page 147 - GARR_TOOL(CATALOG_INT)

Series V4S, V4R, V4B (continued)

.7500"
(19.050mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
50548 - .7500 3/4" 19.050 3/4" 3" 7/8" - - -
NEW 50944 - .7500 3/4" 19.050 3/4" 3" 7/8" .010" - -
NEW 50945 - .7500 3/4" 19.050 3/4" 3" 7/8" .015" - -
NEW 50946 - .7500 3/4" 19.050 3/4" 3" 7/8" .020" - -
50556 - .7500 3/4" 19.050 3/4" 3" 7/8" .030" - -
NEW 50947 - .7500 3/4" 19.050 3/4" 3" 7/8" .060" - -
NEW 50948 - .7500 3/4" 19.050 3/4" 3" 7/8" .120" - -
50549 50550 .7500 3/4" 19.050 3/4" 4" 1" - - -
NEW 50949 - .7500 3/4" 19.050 3/4" 4" 1" .010" - -
NEW 50950 - .7500 3/4" 19.050 3/4" 4" 1" .015" - -
50510 50511 .7500 3/4" 19.050 3/4" 4" 1" .020" - - 70
50512 50513 .7500 3/4" 19.050 3/4" 4" 1" .030" - - 6
50514 50515 .7500 3/4" 19.050 3/4" 4" 1" .060" - -
NEW 50951 - .7500 3/4" 19.050 3/4" 4" 1" .090" - -
NEW 50952 - .7500 3/4" 19.050 3/4" 4" 1" .120" - -
NEW 50953 - .7500 3/4" 19.050 3/4" 4" 1" .190" - -
NEW 50954 - .7500 3/4" 19.050 3/4" 4" 1" .250" - -
NEW 50955 - .7500 3/4" 19.050 3/4" 4" 1" .3125" - -
50248 50288 .7500 3/4" 19.050 3/4" 4" 1-1/2" - - -
NEW 50956 - .7500 3/4" 19.050 3/4" 4" 1-1/2" .010" - -
NEW 50957 - .7500 3/4" 19.050 3/4" 4" 1-1/2" .015" - -
50516 50517 .7500 3/4" 19.050 3/4" 4" 1-1/2" .020" - -
50232 50280 .7500 3/4" 19.050 3/4" 4" 1-1/2" .030" - -
50518 50519 .7500 3/4" 19.050 3/4" 4" 1-1/2" .060" - -
NEW 50958 - .7500 3/4" 19.050 3/4" 4" 1-1/2" .090" - -
50520 50521 .7500 3/4" 19.050 3/4" 4" 1-1/2" .120" - -
NEW 50959 - .7500 3/4" 19.050 3/4" 4" 1-1/2" .125" - -
NEW 50960 - .7500 3/4" 19.050 3/4" 4" 1-1/2" .156" - -
NEW 50961 - .7500 3/4" 19.050 3/4" 4" 1-1/2" .190" - -
NEW 50962 - .7500 3/4" 19.050 3/4" 4" 1-1/2" .250" - -
NEW 50963 - .7500 3/4" 19.050 3/4" 4" 1-1/2" .3125" - -
50264 50296 .7500 3/4" 19.050 3/4" 4" 1-1/2" BALL - -
50551 50552 .7500 3/4" 19.050 3/4" 4" 1-3/4" - - - 35 6
NEW 50964 - .7500 3/4" 19.050 3/4" 4" 1-3/4" .010" - -
NEW 50965 - .7500 3/4" 19.050 3/4" 4" 1-3/4" .015" - -
50522 50523 .7500 3/4" 19.050 3/4" 4" 1-3/4" .020" - -
50524 50525 .7500 3/4" 19.050 3/4" 4" 1-3/4" .030" - -
50526 50527 .7500 3/4" 19.050 3/4" 4" 1-3/4" .060" - -
NEW 50966 - .7500 3/4" 19.050 3/4" 4" 1-3/4" .090" - -
NEW 50967 - .7500 3/4" 19.050 3/4" 4" 1-3/4" .120" - -
NEW 50968 - .7500 3/4" 19.050 3/4" 4" 1-3/4" .125" - -
NEW 50969 - .7500 3/4" 19.050 3/4" 4" 1-3/4" .156" - -
NEW 50970 - .7500 3/4" 19.050 3/4" 4" 1-3/4" .190" - - MATERIAL HARDNESS (Rc)
NEW 50971 - .7500 3/4" 19.050 3/4" 4" 1-3/4" .250" - -
NEW 50972 - .7500 3/4" 19.050 3/4" 4" 1-3/4" .3125" - -

0 6
continued ?
