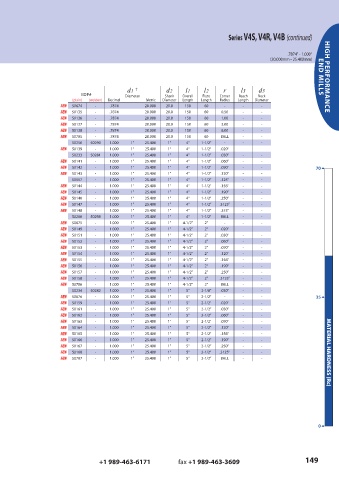

Page 149 - GARR_TOOL(CATALOG_INT)

Series V4S, V4R, V4B (continued)

.7874" - 1.000"
(20.000mm - 25.400mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
NEW 50674 - .7874 20.000 20.0 150 60 - - -
NEW 50135 - .7874 20.000 20.0 150 60 0.50 - -
NEW 50136 - .7874 20.000 20.0 150 60 1.00 - -
NEW 50137 - .7874 20.000 20.0 150 60 3.00 - -
NEW 50138 - .7874 20.000 20.0 150 60 6.00 - -
NEW 50705 - .7874 20.000 20.0 150 60 BALL - -
50250 50290 1.000 1" 25.400 1" 4" 1-1/2" - - -
NEW 50139 - 1.000 1" 25.400 1" 4" 1-1/2" .020"
50233 50281 1.000 1" 25.400 1" 4" 1-1/2" .030" - -
NEW 50141 - 1.000 1" 25.400 1" 4" 1-1/2" .060" - -
NEW 50142 - 1.000 1" 25.400 1" 4" 1-1/2" .090" - - 70 6
NEW 50143 - 1.000 1" 25.400 1" 4" 1-1/2" .120" - -
50557 - 1.000 1" 25.400 1" 4" 1-1/2" .125" - -
NEW 50144 - 1.000 1" 25.400 1" 4" 1-1/2" .156" - -
NEW 50145 - 1.000 1" 25.400 1" 4" 1-1/2" .190" - -
NEW 50146 - 1.000 1" 25.400 1" 4" 1-1/2" .250" - -
NEW 50147 - 1.000 1" 25.400 1" 4" 1-1/2" .3125" - -
NEW 50148 - 1.000 1" 25.400 1" 4" 1-1/2" .375" - -
50266 50298 1.000 1" 25.400 1" 4" 1-1/2" BALL - -
NEW 50675 - 1.000 1" 25.400 1" 4-1/2" 2" - - -
NEW 50149 - 1.000 1" 25.400 1" 4-1/2" 2" .020"
NEW 50151 - 1.000 1" 25.400 1" 4-1/2" 2" .030" - -
NEW 50152 - 1.000 1" 25.400 1" 4-1/2" 2" .060" - -
NEW 50153 - 1.000 1" 25.400 1" 4-1/2" 2" .090" - -
NEW 50154 - 1.000 1" 25.400 1" 4-1/2" 2" .120" - -
NEW 50155 - 1.000 1" 25.400 1" 4-1/2" 2" .156" - -
NEW 50156 - 1.000 1" 25.400 1" 4-1/2" 2" .190" - -
NEW 50157 - 1.000 1" 25.400 1" 4-1/2" 2" .250" - -
NEW 50158 - 1.000 1" 25.400 1" 4-1/2" 2" .3125" - -
NEW 50706 - 1.000 1" 25.400 1" 4-1/2" 2" BALL - -
50234 50282 1.000 1" 25.400 1" 5" 2-1/8" .030" - -
NEW 50676 - 1.000 1" 25.400 1" 5" 2-1/2" - - - 35 6
NEW 50159 - 1.000 1" 25.400 1" 5" 2-1/2" .020" - -
NEW 50161 - 1.000 1" 25.400 1" 5" 2-1/2" .030" - -
NEW 50162 - 1.000 1" 25.400 1" 5" 2-1/2" .060" - -
NEW 50163 - 1.000 1" 25.400 1" 5" 2-1/2" .090" - -
NEW 50164 - 1.000 1" 25.400 1" 5" 2-1/2" .120" - -
NEW 50165 - 1.000 1" 25.400 1" 5" 2-1/2" .156" - -
NEW 50166 - 1.000 1" 25.400 1" 5" 2-1/2" .190" - -
NEW 50167 - 1.000 1" 25.400 1" 5" 2-1/2" .250" - -
NEW 50168 - 1.000 1" 25.400 1" 5" 2-1/2" .3125" - - MATERIAL HARDNESS (Rc)
NEW 50707 - 1.000 1" 25.400 1" 5" 2-1/2" BALL - -

0 6
