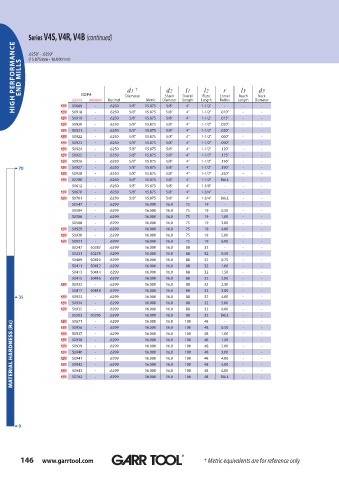

Page 146 - GARR_TOOL(CATALOG_INT)

Series V4S, V4R, V4B (continued)
HIGH PERFORMANCE END MILLS (15.875mm - 16.000mm) EDP# Diameter Shank Overall Flute Corner Reach Neck
.6250" - .6299"

d1
r
†
l3
l2
d2
d3
l1
Metric
NEW
4"
-
5/8"
1-1/2"
-
50669
-
.6250
-
NEW
-
4"
1-1/2"
.6250
5/8"
50918
15.875
-
5/8"
-
.010"
NEW (plain) (weldon) Decimal 5/8" 15.875 Diameter Length Length Radius Length Diameter
50919
5/8"
-
.015"
15.875
5/8"
.6250
-
4"
1-1/2"
-
NEW 50920 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .020" - -
NEW 50921 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .030" - -
NEW 50922 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .060" - -
NEW 50923 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .090" - -
NEW 50924 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .120" - -
NEW 50925 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .125" - -
NEW 50926 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .156" - -
70 NEW 50927 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .190" - -
6
NEW 50928 - .6250 5/8" 15.875 5/8" 4" 1-1/2" .250" - -
NEW 50700 - .6250 5/8" 15.875 5/8" 4" 1-1/2" BALL - -
50612 - .6250 5/8" 15.875 5/8" 4" 1-5/8" - - -
NEW 50670 - .6250 5/8" 15.875 5/8" 4" 1-3/4" - - -
NEW 50701 - .6250 5/8" 15.875 5/8" 4" 1-3/4" BALL - -
50547 - .6299 16.000 16.0 75 19 - - -
50504 - .6299 16.000 16.0 75 19 0.50 - -
50506 - .6299 16.000 16.0 75 19 1.00 - -
50508 - .6299 16.000 16.0 75 19 3.00 - -
NEW 50929 - .6299 16.000 16.0 75 19 4.00 - -
NEW 50930 - .6299 16.000 16.0 75 19 5.00 - -
NEW 50931 - .6299 16.000 16.0 75 19 6.00 - -
50247 50287 .6299 16.000 16.0 88 32 - - -
50231 50279 .6299 16.000 16.0 88 32 0.50 - -
50409 50410 .6299 16.000 16.0 88 32 0.75 - -
50411 50412 .6299 16.000 16.0 88 32 1.00 - -
50413 50414 .6299 16.000 16.0 88 32 1.50 - -
50415 50416 .6299 16.000 16.0 88 32 2.00 - -
NEW 50932 - .6299 16.000 16.0 88 32 2.50 - -
50417 50418 .6299 16.000 16.0 88 32 3.00 - -
35 NEW 50933 - .6299 16.000 16.0 88 32 4.00 - -
6
NEW 50934 - .6299 16.000 16.0 88 32 5.00 - -
NEW 50935 - .6299 16.000 16.0 88 32 6.00 - -
88
50263 50295 .6299 16.000 16.0 100 32 BALL - - - - - - - -
NEW
48
16.0
16.000
50671
-
-
.6299
MATERIAL HARDNESS (Rc) NEW 50938 - - - - - - - .6299 16.000 16.0 100 48 BALL - - - - - - - - - - - - - -
NEW
.6299
-
100
48
16.0
0.50
50936
16.000
NEW
16.0
.6299
100
48
50937
-
16.000
1.00
1.50
100
50939
NEW
16.0
.6299
16.000
48
2.00
NEW
3.00
.6299
50940
100
48
16.000
16.0
NEW
48
4.00
50941
16.0
.6299
16.000
100
NEW
100
5.00
16.000
.6299
48
16.0
50942
NEW
50943
6.00
.6299
16.0
48
100
16.000
NEW
48
16.0
100
50702
.6299
16.000
0
6
146 www.garrtool.com ® ® ® † Metric equivalents are for reference only
