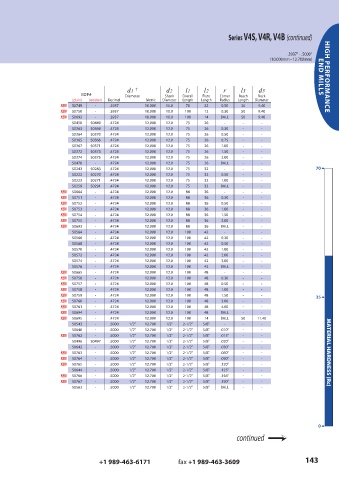

Page 143 - GARR_TOOL(CATALOG_INT)

Series V4S, V4R, V4B (continued)

.3937" - .5000"
(10.000mm - 12.700mm)

d1 † d2 l1 l2 r l3 d3 END MILLS HIGH PERFORMANCE
EDP# Diameter Shank Overall Flute Corner Reach Neck
(plain) (weldon) Decimal Metric Diameter Length Length Radius Length Diameter
NEW 50749 - .3937 10.000 10.0 70 22 0.50 30 9.40
NEW 50750 - .3937 10.000 10.0 100 12 0.30 50 9.40
NEW 50692 - .3937 10.000 10.0 100 14 BALL 50 9.40
50450 50449 .4724 12.000 12.0 75 26 - - -
50363 50369 .4724 12.000 12.0 75 26 0.30 - -
50364 50370 .4724 12.000 12.0 75 26 0.50 - -
50365 50366 .4724 12.000 12.0 75 26 0.75 - -
50367 50371 .4724 12.000 12.0 75 26 1.00 - -
50372 50373 .4724 12.000 12.0 75 26 1.50 - -
50374 50375 .4724 12.000 12.0 75 26 2.00 - -
50470 - .4724 12.000 12.0 75 26 BALL - -
50243 50283 .4724 12.000 12.0 75 32 - - - 70 6
50222 50270 .4724 12.000 12.0 75 32 0.50 - -
50223 50271 .4724 12.000 12.0 75 32 1.00 - -
50259 50291 .4724 12.000 12.0 75 32 BALL - -
NEW 50664 - .4724 12.000 12.0 88 36 - - -
NEW 50751 - .4724 12.000 12.0 88 36 0.30 - -
NEW 50752 - .4724 12.000 12.0 88 36 0.50 - -
NEW 50753 - .4724 12.000 12.0 88 36 1.00 - -
NEW 50754 - .4724 12.000 12.0 88 36 1.50 - -
NEW 50755 - .4724 12.000 12.0 88 36 3.00 - -
NEW 50693 - .4724 12.000 12.0 88 36 BALL - -
50564 - .4724 12.000 12.0 100 42 - - -
50566 - .4724 12.000 12.0 100 42 0.30 - -
50568 - .4724 12.000 12.0 100 42 0.50 - -
50570 - .4724 12.000 12.0 100 42 1.00 - -
50572 - .4724 12.000 12.0 100 42 2.00 - -
50574 - .4724 12.000 12.0 100 42 3.00 - -
50576 - .4724 12.000 12.0 100 42 BALL - -
NEW 50665 - .4724 12.000 12.0 100 48 - - -
NEW 50756 - .4724 12.000 12.0 100 48 0.30 - -
NEW 50757 - .4724 12.000 12.0 100 48 0.50 - -
NEW 50758 - .4724 12.000 12.0 100 48 1.00 - -
NEW 50759 - .4724 12.000 12.0 100 48 1.50 - - 35 6
NEW 50760 - .4724 12.000 12.0 100 48 3.00 - -
NEW 50761 - .4724 12.000 12.0 100 48 4.00 - -
NEW 50694 - .4724 12.000 12.0 100 48 BALL - -
NEW 50695 - .4724 12.000 12.0 100 14 BALL 50 11.40
50543 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" - - -
50640 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .010" - -
NEW 50762 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .015" - -
50496 50497 .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .020" - -
50642 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .030" - -
NEW 50763 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .060" - - MATERIAL HARDNESS (Rc)
NEW 50764 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .090" - -
NEW 50765 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .120" - -
50644 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .125" - -
NEW 50766 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .156" - -
NEW 50767 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" .190" - -
50563 - .5000 1/2" 12.700 1/2" 2-1/2" 5/8" BALL - -

0 6
continued ?
