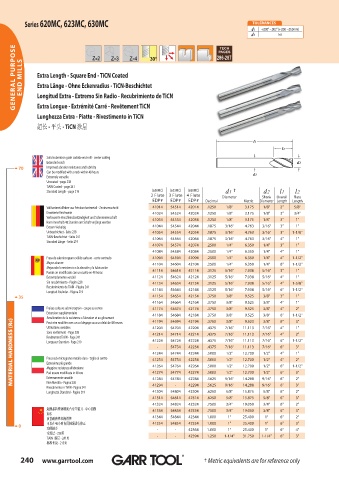

Page 240 - GARR_TOOL(CATALOG_INT)

Series 620MC, 623MC, 630MC TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6

GENERAL PURPOSE END MILLS Extra Length - Square End - TiCN Coated 286-287
Z2
=

Extra Länge - Ohne Eckenradius - TiCN-Beschichtet
Longitud Extra - Extremo Sin Radio - Recubrimiento de TiCN
Extra Longue - Extrémité Carré - Revêtement TiCN
Lunghezza Extra - Piatte - Rivestimento in TiCN

超长 平头 涂层
超长 - 平头 - TiCN 涂层

Solid submicron grain carbide end mill - center cutting
Extended reach
70 Improved abrasion resistance and lubricity
Can be modified with a neck within 48 hours
6
Extremely versatile
Uncoated - page 238
TiAlN Coated - page 241
Standard Length - page 219 (620MC) (623MC) (630MC) d1 † d2 l1 l2
2 Flute 3 Flute 4 Flute Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 41014 54514 42014 .1250 1/8" 3.175 1/8" 2" 5/8"
Erweiterte Reichweite 41024 54524 42024 .1250 1/8" 3.175 1/8" 3" 3/4"
Verbesserte Verschleissbeständigkeit und Schmiereienschaft 41034 54534 42034 .1250 1/8" 3.175 1/8" 3" 1"
Kann innerhalb 48 Stunden am Schaft verjüngt werden
Extrem Vielseitig 41044 54544 42044 .1875 3/16" 4.763 3/16" 3" 1"
Unbeschichtet - Seite 238 41054 54554 42054 .1875 3/16" 4.763 3/16" 3" 1-1/8"
TiAlN-Beschichtet - Seite 241 41064 54564 42064 .1875 3/16" 4.763 3/16" 4" 1"
Standard Länge - Seite 219
41074 54574 42074 .2500 1/4" 6.350 1/4" 3" 1"
41084 54584 42084 .2500 1/4" 6.350 1/4" 4" 1"
Fresa de submicrograno sólido carburo - corte centrado 41094 54594 42094 .2500 1/4" 6.350 1/4" 4" 1-1/2"
Mayor alcance 41104 54604 42104 .2500 1/4" 6.350 1/4" 6" 1-1/2"
Mejoradas la resistencia a la abrasión y la lubricación
Puede ser modificado con un cuello en 48 horas 41114 54614 42114 .3125 5/16" 7.938 5/16" 3" 1"
Extremadamente versátil 41124 54624 42124 .3125 5/16" 7.938 5/16" 4" 1"
Sin recubrimiento - Página 238 41134 54634 42134 .3125 5/16" 7.938 5/16" 4" 1-5/8"
Recubrimiento de TiAlN - Página 241
Longitud Estándar - Página 219 41144 54644 42144 .3125 5/16" 7.938 5/16" 6" 1-1/2"
35 41154 54654 42154 .3750 3/8" 9.525 3/8" 3" 1"
6
41164 54664 42164 .3750 3/8" 9.525 3/8" 4" 1"
Fraises carbure submicrograin - coupe au centre 41174 54674 42174 .3750 3/8" 9.525 3/8" 4" 2"
Extension supplémentaire 41184 54684 42184 .3750 3/8" 9.525 3/8" 6" 1-1/2"
Amelioration de la resistance a l’abrasion et au glissement 41194 54694 42194 .3750 7/16" 11.113 7/16" 6" 3"
MATERIAL HARDNESS (Rc) Revêtement TiAlN - Page 241 41224 54724 42224 .4375 7/16" 11.113 7/16" 6" 1-1/2"
3/8"
3/8"
9.523
Peut etre modifier avec un col degage sous un delai de 48 heures
41204
Utilisations variables
.4375
54704
1"
4"
42204
Sans revêtement - Page 238
.4375
54714
7/16"
11.113
42214
41214
2"
4"
7/16"
Longueur Standart - Page 219
.4375
6"
-
54734
11.113
42234
7/16"
3"
7/16"
54744
42244
1/2"
1"
41244
12.700
.5000
4"
1/2"
Fresa sub-micrograno metallo duro - taglio al centro
2"
12.700
1/2"
1/2"
.5000
4"
42254
41254
54754
Estensione più grande
1/2"
6"
12.700
1/2"
41264
54764
1-1/2"
.5000
42264
Maggiore resistenza all’abrasione
Può essere modificata in 48 ore
1/2"
1/2"
Estremamente varsatile
14.288
2"
42284
.5625
41284
6"
54784
Non Rivestito - Pagina 238
9/16"
6"
41294
14.288
3"
9/16"
42294
-
.5625
Rivestimento in TiAlN - Pagina 241 41274 54774 42274 .5000 9/16" 12.700 9/16" 6" 3"
Lunghezza Standard - Pagina 219 41304 54804 42304 .6250 5/8" 15.875 5/8" 6" 2"
41314 54814 42314 .6250 5/8" 15.875 5/8" 6" 3"
41324 54824 42324 .7500 3/4" 19.050 3/4" 6" 2"
超细晶粒整体硬质合金立铣刀 - 中心切削 41334 54834 42334 .7500 3/4" 19.050 3/4" 6" 3"
加长
改善耐磨性和润滑性 41344 54844 42344 1.000 1" 25.400 1" 6" 2"
0 可以在48小时内用轴颈进行修正 41354 54854 42354 1.000 1" 25.400 1" 6" 3"
功能极多
6
未涂层 - 238页 - - 42364 1.000 1" 25.400 1" 6" 4"
TiAlN 涂层 - 241页 - - 42394 1.250 1-1/4" 31.750 1-1/4" 6" 3"
标准长度
标准长度 - 219页
240 www.garrtool.com ® ® ® † Metric equivalents are for reference only
