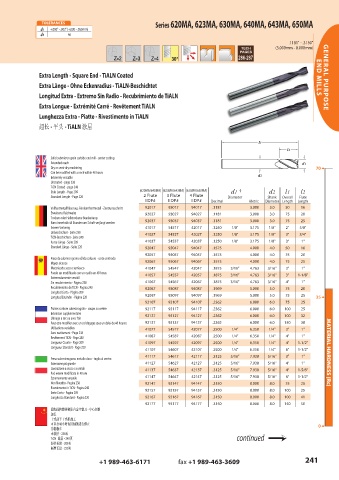

Page 241 - GARR_TOOL(CATALOG_INT)

TOLERANCES Series 620MA, 623MA, 630MA, 640MA, 643MA, 650MA
d1 +.000" –.002" (+.000 –.050mm)
d2 h6
.1181" - .3150"
(3.000mm - 8.000mm)
Z2 286-287
=

Extra Length - Square End - TiALN Coated END MILLS GENERAL PURPOSE
Extra Länge - Ohne Eckenradius - TiALN-Beschichtet
Longitud Extra - Extremo Sin Radio - Recubrimiento de TiALN
Extra Longue - Extrémité Carré - Revêtement TiALN
Lunghezza Extra - Piatte - Rivestimento in TiALN

超长 平头 涂层
超长 - 平头 - TiALN 涂层

Solid submicron grain carbide end mill - center cutting
Extended reach
Dry or semi-dry machining 70 6
Can be modified with a neck within 48 hours
Extremely versatile
Uncoated - page 238
TiCN Coated - page 240
Stub Length - Page 209 (620MA/640MA) (623MA/643MA) (630MA/650MA) d1 † d2 l1 l2
Standard Length - Page 220 2 Flute 3 Flute 4 Flute Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 92017 93017 94017 .1181 3.000 3.0 50 16
Erweiterte Reichweite 92027 93027 94027 .1181 3.000 3.0 75 20
Trocken oder Halbtrockene Bearbeitung
Kann innerhalb 48 Stunden am Schaft verjüngt werden 92037 93037 94037 .1181 3.000 3.0 75 25
Extrem Vielseitig 41017 54517 42017 .1250 1/8" 3.175 1/8" 2" 5/8"
Unbeschichtet - Seite 238 41027 54527 42027 .1250 1/8" 3.175 1/8" 3" 3/4"
TiCN-Beschichtet - Seite 240
Kurze Länge - Seite 209 41037 54537 42037 .1250 1/8" 3.175 1/8" 3" 1"
Standard Länge - Seite 220 92047 93047 94047 .1575 4.000 4.0 50 16
92057 93057 94057 .1575 4.000 4.0 75 20
Fresa de submicrograno sólido carburo - corte centrado
Mayor alcance 92067 93067 94067 .1575 4.000 4.0 75 25
Mecanizado seco o semiseco 41047 54547 42047 .1875 3/16" 4.763 3/16" 3" 1"
Puede ser modificado con un cuello en 48 horas 41057 54557 42057 .1875 3/16" 4.763 3/16" 3" 1-1/8"
Extremadamente versátil
Sin recubrimiento - Página 238 41067 54567 42067 .1875 3/16" 4.763 3/16" 4" 1"
Recubrimiento de TiCN - Página 240 92087 93087 94087 .1969 5.000 5.0 75 20
Longitud Corta - Página 209
Longitud Estándar - Página 220 92097 93097 94097 .1969 5.000 5.0 75 25 35 6
92107 93107 94107 .2362 6.000 6.0 75 25
Fraises carbure submicrograin - coupe au centre 92117 93117 94117 .2362 6.000 6.0 100 25
Extension supplémentaire 92127 93127 94127 .2362 6.000 6.0 100 32
Usinage a sec ou avec l’air
Peut etre modifier avec un col degage sous un delai de 48 heures 92137 93137 94137 .2362 6.000 6.0 150 38
Utilisations variables 41077 54577 42077 .2500 1/4" 6.350 1/4" 3" 1"
Sans revêtement - Page 238
Revêtement TiCN - Page 240 41087 54587 42087 .2500 1/4" 6.350 1/4" 4" 1"
Longueur Courte - Page 209 41097 54597 42097 .2500 1/4" 6.350 1/4" 4" 1-1/2"
Longueur Standart - Page 220
41107 54607 42107 .2500 1/4" 6.350 1/4" 6" 1-1/2" MATERIAL HARDNESS (Rc)
41117 54617 42117 .3125 5/16" 7.938 5/16" 3" 1"
Fresa sub-micrograno metallo duro - taglio al centro
Estensione più grande 41127 54627 42127 .3125 5/16" 7.938 5/16" 4" 1"
Lavorazione a secco o a umido 41137 54637 42137 .3125 5/16" 7.938 5/16" 4" 1-5/8"
Può essere modificata in 48 ore
Estremamente varsatile 41147 54647 42147 .3125 5/16" 7.938 5/16" 6" 1-1/2"
Non Rivestito - Pagina 238 92147 93147 94147 .3150 8.000 8.0 75 25
Rivestimento in TiCN - Pagina 240
Serie Corta - Pagina 209 92157 93157 94157 .3150 8.000 8.0 100 25
Lunghezza Standard - Pagina 220 92167 93167 94167 .3150 8.000 8.0 100 41
92177 93177 94177 .3150 8.000 8.0 150 50
超细晶粒整体硬质合金立铣刀 - 中心切削
加长
干式或半干式机加工
可以在48小时内用轴颈进行修正 0 6
功能极多
未涂层 - 238页
TiCN 涂层 - 240页 continued ?
短柱长度
短柱长度 - 209页
标准长度 - 220页
标准长度
+1 989-463-6171 fax +1 989-463-3609 241
