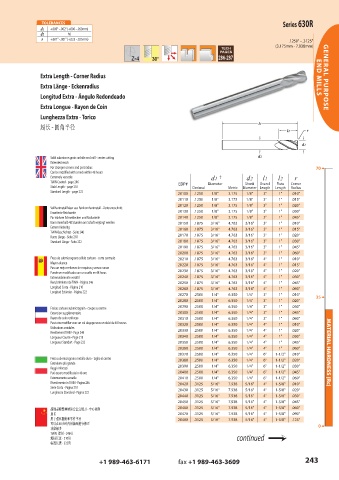

TOLERANCES Series 630R
d1 +.000" –.002" (+.000 –.050mm)
d2 h6
r +.001" –.001" (+.025 –.025mm) .1250" - .3125"
(3.175mm - 7.938mm)
286-287

Extra Length - Corner Radius END MILLS GENERAL PURPOSE
Extra Länge - Eckenradius
Longitud Extra - Ángulo Redondeado
Extra Longue - Rayon de Coin

Lunghezza Extra - Torico
超长 - 圆角半径
超长 圆角半径

Solid submicron grain carbide end mill - center cutting
Extended reach
For stronger corners and part radius 70 6
Can be modified with a neck within 48 hours
Extremely versatile d1 † d2 l1 l2 r
TiAlN Coated - page 246 EDP# Diameter Shank Overall Flute Corner
Stub Length - page 210 Decimal Metric Diameter Length Length Radius
Standard Length - page 222
20100 .1250 1/8" 3.175 1/8" 3" 1" .010"
20110 .1250 1/8" 3.175 1/8" 3" 1" .015"
20120 .1250 1/8" 3.175 1/8" 3" 1" .020"
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt
Erweiterte Reichweite 20130 .1250 1/8" 3.175 1/8" 3" 1" .030"
Für stärkere Schneidecken und Radiusteile 20140 .1250 1/8" 3.175 1/8" 3" 1" .045"
Kann innerhalb 48 Stunden am Schaft verjüngt werden 20150 .1875 3/16" 4.763 3/16" 3" 1" .010"
Extrem Vielseitig 20160 .1875 3/16" 4.763 3/16" 3" 1" .015"
TiAlN-Beschichtet - Seite 246
Kurze Länge - Seite 210 20170 .1875 3/16" 4.763 3/16" 3" 1" .020"
Standard Länge - Seite 222 20180 .1875 3/16" 4.763 3/16" 3" 1" .030"
20190 .1875 3/16" 4.763 3/16" 3" 1" .045"
20200 .1875 3/16" 4.763 3/16" 3" 1" .060"
Fresa de submicrograno sólido carburo - corte centrado 20210 .1875 3/16" 4.763 3/16" 4" 1" .010"
Mayor alcance 20220 .1875 3/16" 4.763 3/16" 4" 1" .015"
Para un mejor refuerzo de esquinas y zonas curvas
Puede ser modificado con un cuello en 48 horas 20230 .1875 3/16" 4.763 3/16" 4" 1" .020"
Extremadamente versátil 20240 .1875 3/16" 4.763 3/16" 4" 1" .030"
Recubrimiento de TiAlN - Página 246 20250 .1875 3/16" 4.763 3/16" 4" 1" .045"
Longitud Corta - Página 210 20260 .1875 3/16" 4.763 3/16" 4" 1" .060"
Longitud Estándar - Página 222
20270 .2500 1/4" 6.350 1/4" 3" 1" .010" 35 6
20280 .2500 1/4" 6.350 1/4" 3" 1" .020"
Fraises carbure submicrograin - coupe au centre 20290 .2500 1/4" 6.350 1/4" 3" 1" .030"
Extension supplémentaire 20300 .2500 1/4" 6.350 1/4" 3" 1" .045"
Rayon de coin renforces 20310 .2500 1/4" 6.350 1/4" 3" 1" .060"
Peut etre modifier avec un col degage sous un delai de 48 heures 20320 .2500 1/4" 6.350 1/4" 4" 1" .010"
Utilisations variables
Revêtement TiAlN - Page 246 20330 .2500 1/4" 6.350 1/4" 4" 1" .020"
Longueur Courte - Page 210 20340 .2500 1/4" 6.350 1/4" 4" 1" .030"
Longueur Standart - Page 222 20350 .2500 1/4" 6.350 1/4" 4" 1" .045"
20360 .2500 1/4" 6.350 1/4" 4" 1" .060"
20370 .2500 1/4" 6.350 1/4" 6" 1-1/2" .010" MATERIAL HARDNESS (Rc)
Fresa sub-micrograno metallo duro - taglio al centro 20380 .2500 1/4" 6.350 1/4" 6" 1-1/2" .020"
Estensione più grande
Raggi rinforzati 20390 .2500 1/4" 6.350 1/4" 6" 1-1/2" .030"
Può essere modificata in 48 ore 20400 .2500 1/4" 6.350 1/4" 6" 1-1/2" .045"
Estremamente varsatile 20410 .2500 1/4" 6.350 1/4" 6" 1-1/2" .060"
Rivestimento in TiAlN - Pagina 246 20420 .3125 5/16" 7.938 5/16" 4" 1-5/8" .010"
Serie Corta - Pagina 210 20430 .3125 5/16" 7.938 5/16" 4" 1-5/8" .020"
Lunghezza Standard - Pagina 222
20440 .3125 5/16" 7.938 5/16" 4" 1-5/8" .030"
20450 .3125 5/16" 7.938 5/16" 4" 1-5/8" .045"
超细晶粒整体硬质合金立铣刀 - 中心切削 20460 .3125 5/16" 7.938 5/16" 4" 1-5/8" .060"
加长 20470 .3125 5/16" 7.938 5/16" 4" 1-5/8" .090"
用于强化圆角和零件半径 20480 .3125 5/16" 7.938 5/16" 4" 1-5/8" .125"
可以在48小时内用轴颈进行修正 0
功能极多 6
TiAlN 涂层 - 246页
短柱长度 continued ?
短柱长度 - 210页
标准长度
标准长度 - 222页
+1 989-463-6171 fax +1 989-463-3609 243
