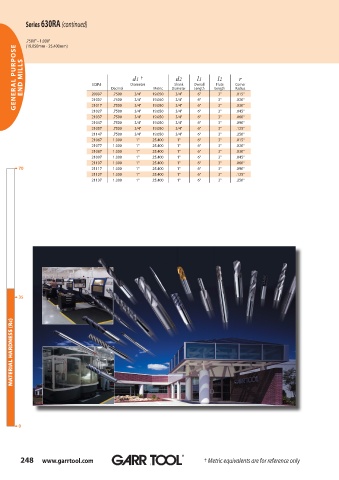

Page 248 - GARR_TOOL(CATALOG_INT)

Series 630RA (continued)

.7500" - 1.000"
(19.050mm - 25.400mm)
GENERAL PURPOSE END MILLS 20997 Decimal Diameter 19.050 Diameter Overall Length Corner

r
d1
†
d2
l1
l2
Shank
EDP#
Flute
Metric
Length
Radius
3"
.7500
3/4"
3/4"
.015"
6"
21007
3/4"
19.050
3/4"
21017
3"
6"
.030"
.7500
19.050
.045"
3/4"
3"
21027
.7500
6"
3/4"
3"
.7500
3/4"
6"
19.050
3/4"
21037 .7500 3/4" 19.050 3/4" 6" 3" .020"
.060"
21047 .7500 3/4" 19.050 3/4" 6" 3" .090"
21057 .7500 3/4" 19.050 3/4" 6" 3" .125"
21147 .7500 3/4" 19.050 3/4" 6" 3" .250"
21067 1.000 1" 25.400 1" 6" 3" .015"
21077 1.000 1" 25.400 1" 6" 3" .020"
21087 1.000 1" 25.400 1" 6" 3" .030"
21097 1.000 1" 25.400 1" 6" 3" .045"
21107 1.000 1" 25.400 1" 6" 3" .060"
70 21117 1.000 1" 25.400 1" 6" 3" .090"
6
21127 1.000 1" 25.400 1" 6" 3" .125"
21137 1.000 1" 25.400 1" 6" 3" .250"
35
6
MATERIAL HARDNESS (Rc)

0
6

248 www.garrtool.com ® ® ® † Metric equivalents are for reference only
