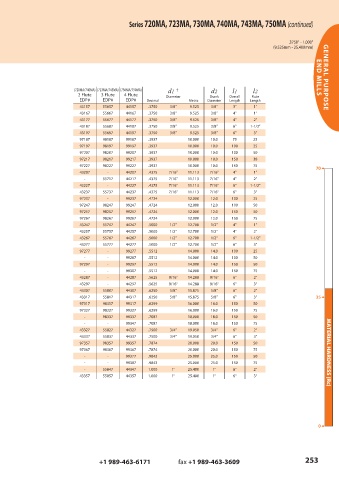

Page 253 - GARR_TOOL(CATALOG_INT)

Series 720MA, 723MA, 730MA, 740MA, 743MA, 750MA (continued)

.3750" - 1.000"
(9.525mm - 25.400mm)

(720MA/740MA) (723MA/743MA) (730MA/750MA) d1 † d2 l1 l2 END MILLS GENERAL PURPOSE
2 Flute 3 Flute 4 Flute Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
43157 55657 44157 .3750 3/8" 9.525 3/8" 3" 1"
43167 55667 44167 .3750 3/8" 9.525 3/8" 4" 1"
43177 55677 44177 .3750 3/8" 9.525 3/8" 4" 2"
43187 55687 44187 .3750 3/8" 9.525 3/8" 6" 1-1/2"
43197 55697 44197 .3750 3/8" 9.525 3/8" 6" 3"
97187 98187 99187 .3937 10.000 10.0 75 25
97197 98197 99197 .3937 10.000 10.0 100 25
97207 98207 99207 .3937 10.000 10.0 100 50
97217 98217 99217 .3937 10.000 10.0 150 38
97227 98227 99227 .3937 10.000 10.0 150 75 70 6
43207 - 44207 .4375 7/16" 11.113 7/16" 4" 1"
- 55717 44217 .4375 7/16" 11.113 7/16" 4" 2"
43227 - 44227 .4375 7/16" 11.113 7/16" 6" 1-1/2"
43237 55737 44237 .4375 7/16" 11.113 7/16" 6" 3"
97237 - 99237 .4724 12.000 12.0 100 25
97247 98247 99247 .4724 12.000 12.0 100 50
97257 98257 99257 .4724 12.000 12.0 150 50
97267 98267 99267 .4724 12.000 12.0 150 75
43247 55747 44247 .5000 1/2" 12.700 1/2" 4" 1"
43257 55757 44257 .5000 1/2" 12.700 1/2" 4" 2"
43267 55767 44267 .5000 1/2" 12.700 1/2" 6" 1-1/2"
43277 55777 44277 .5000 1/2" 12.700 1/2" 6" 3"
97277 - 99277 .5512 14.000 14.0 100 25
- - 99287 .5512 14.000 14.0 100 50
97297 - 99297 .5512 14.000 14.0 150 50
- - 99307 .5512 14.000 14.0 150 75
43287 - 44287 .5625 9/16" 14.288 9/16" 6" 2"
43297 - 44297 .5625 9/16" 14.288 9/16" 6" 3"
43307 55807 44307 .6250 5/8" 15.875 5/8" 6" 2"
43317 55817 44317 .6250 5/8" 15.875 5/8" 6" 3" 35 6
97317 98317 99317 .6299 16.000 16.0 150 50
97327 98327 99327 .6299 16.000 16.0 150 75
- 98337 99337 .7087 18.000 18.0 150 50
- - 99347 .7087 18.000 18.0 150 75
43327 55827 44327 .7500 3/4" 19.050 3/4" 6" 2"
43337 55837 44337 .7500 3/4" 19.050 3/4" 6" 3"
97357 98357 99357 .7874 20.000 20.0 150 50
97367 98367 99367 .7874 20.000 20.0 150 75 MATERIAL HARDNESS (Rc)
- - 99377 .9843 25.000 25.0 150 50
- - 99387 .9843 25.000 25.0 150 75
- 55847 44347 1.000 1" 25.400 1" 6" 2"
43357 55857 44357 1.000 1" 25.400 1" 6" 3"

0 6
