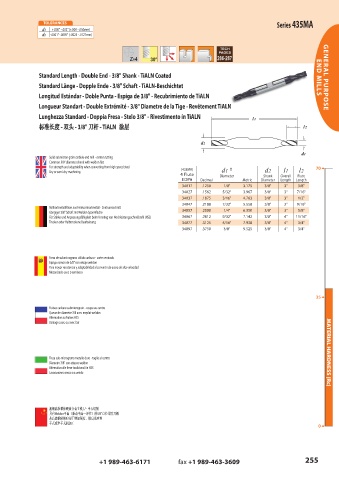

Page 255 - GARR_TOOL(CATALOG_INT)

TOLERANCES Series 435MA
d1 +.000" –.002" (+.000 –.050mm)
d2 -.0001" -.0005" (-.0025 - .0127mm)

286-287

Standard Length - Double End - 3/8" Shank - TiALN Coated END MILLS GENERAL PURPOSE
Standard Länge - Dopple Ende - 3/8" Schaft - TiALN-Beschichtet
Longitud Estándar - Doble Punta - Espiga de 3/8" - Recubrimiento de TiALN
Longueur Standart - Double Extrémité - 3/8" Diametre de la Tige - Revêtement TiALN

Lunghezza Standard - Doppia Fresa - Stelo 3/8" - Rivestimento in TiALN
标准长度 - 双头 - 刀杆 - 涂层
标准长度 - 双头 - 3/8" 刀杆 - TiALN 涂层

Solid submicron grain carbide end mill - center cutting
Common 3/8" diameter shank with weldon flat
For strength and adaptability when converting from high speed steel (435MA) d1 † 70 6
Dry or semi-dry machining d2 l1 l2
4 Flute Diameter Shank Overall Flute
EDP# Decimal Metric Diameter Length Length
34017 .1250 1/8" 3.175 3/8" 3" 3/8"
34027 .1562 5/32" 3.967 3/8" 3" 7/16"
34037 .1875 3/16" 4.763 3/8" 3" 1/2"
34047 .2188 7/32" 5.558 3/8" 3" 9/16"
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt
Gängiger 3/8" Schaft mit Weldon Spannfläche 34057 .2500 1/4" 6.350 3/8" 3" 5/8"
Für Stärke und Anpassungsfähigkeit beim Umstieg von Hochleistungsschnellstahl (HSS) 34067 .2812 9/32" 7.142 3/8" 4" 11/16"
Trocken oder Halbtrockene Bearbeitung 34077 .3125 5/16" 7.938 3/8" 4" 3/4"
34097 .3750 3/8" 9.525 3/8" 4" 3/4"

Fresa de submicrograno sólido carburo - corte centrado
Espiga común de 3/8" con rebaje weldon
Para mayor resistencia y adaptabilidad al convertir de acero de alta velocidad
Mecanizado seco o semiseco

35 6

Fraises carbure submicrograin - coupe au centre
Queue de diametre 3/8 avec meplat weldon
Alternative au fraises HSS
Usinage a sec ou avec l’air

Fresa sub-micrograno metallo duro - taglio al centro MATERIAL HARDNESS (Rc)
Diametro 3/8" con attacco weldon
Alternativa alle frese tradizionali in HSS
Lavorazione a secco o a umido

超细晶粒整体硬质合金立铣刀 - 中心切削
具有Weldon平面（驱动平面—译注）的3/8"直径常用刀柄
从高速钢转换时用于增加强度、提高适应性
干式或半干式机加工
0 6

+1 989-463-6171 fax +1 989-463-3609 255
