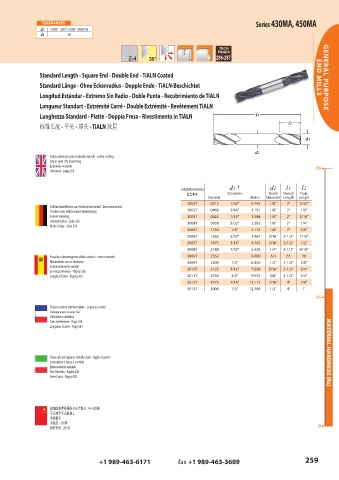

Page 259 - GARR_TOOL(CATALOG_INT)

Series 430MA, 450MA
TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6

286-287

Standard Length - Square End - Double End - TiALN Coated END MILLS GENERAL PURPOSE
Standard Länge - Ohne Eckenradius - Dopple Ende - TiALN-Beschichtet
Longitud Estándar - Extremo Sin Radio - Doble Punta - Recubrimiento de TiALN
Longueur Standart - Extrémité Carré - Double Extrémité - Revêtement TiALN
Lunghezza Standard - Piatte - Doppia Fresa - Rivestimento in TiALN

平头
球头
涂层
标准长度 - 平头 - 球头 - TiALN 涂层
标准长度

Solid submicron grain carbide end mill - center cutting
Dry or semi-dry machining
Extremely versatile 70 6
Uncoated - page 258

d1 † d2 l1 l2
(430MA/450MA)
EDP# Diameter Shank Overall Flute
Decimal Metric Diameter Length Length
30017 .0312 1/32" 0.792 1/8" 2“ 3/32"
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt
Trocken oder Halbtrockene Bearbeitung 30027 .0469 3/64" 1.191 1/8" 2“ 1/8"
Extrem Vielseitig 30037 .0625 1/16" 1.588 1/8" 2“ 3/16"
Unbeschichtet - Seite 236 30047 .0938 3/32" 2.383 1/8" 2“ 1/4"
Kurze Länge - Seite 203
30057 .1250 1/8" 3.175 1/8" 2“ 3/8"
30067 .1562 5/32" 3.967 3/16" 2-1/2“ 7/16"
30077 .1875 3/16" 4.763 3/16" 2-1/2“ 1/2"
30087 .2188 7/32" 5.558 1/4" 2-1/2“ 9/16"
Fresa de submicrograno sólido carburo - corte centrado 30607 .2362 6.000 6.0 65 16
Mecanizado seco o semiseco 30097 .2500 1/4" 6.350 1/4" 2-1/2“ 5/8"
Extremadamente versátil 30107 .3125 5/16" 7.938 5/16" 3-1/2“ 3/4"
Sin recubrimiento - Página 236
Longitud Corta - Página 203 30117 .3750 3/8" 9.525 3/8" 3-1/2“ 3/4"
30127 .4375 7/16" 11.113 7/16" 4" 7/8"
30137 .5000 1/2" 12.700 1/2" 4" 1"
35 6

Fraises carbure submicrograin - coupe au centre
Usinage a sec ou avec l’air
Utilisations variables
Sans revêtement - Page 236
Longueur Courte - Page 203

Fresa sub-micrograno metallo duro - taglio al centro MATERIAL HARDNESS (Rc)
Lavorazione a secco o a umido
Estremamente varsatile
Non Rivestito - Pagina 236
Serie Corta - Pagina 203

超细晶粒整体硬质合金立铣刀 - 中心切削
干式或半干式机加工
功能极多
未涂层 - 236页
短柱长度 - 203页
短柱长度 0 6
