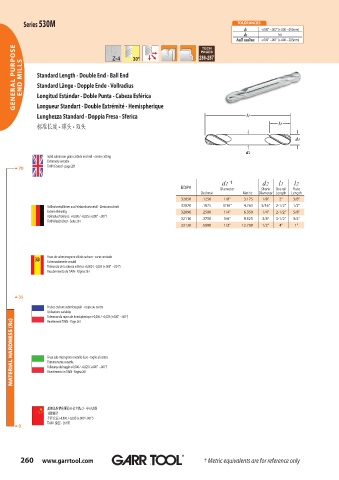

Page 260 - GARR_TOOL(CATALOG_INT)

Series 530M TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6
ball radius +.000" –.001" (+.000 –.025mm)
GENERAL PURPOSE END MILLS Standard Length - Double End - Ball End
286-287

Standard Länge - Dopple Ende - Vollradius
Longitud Estándar - Doble Punta - Cabeza Esférica
Longueur Standart - Double Extrémité - Hemispherique
Lunghezza Standard - Doppia Fresa - Sferica

标准长度 球头 双头
标准长度 - 球头 - 双头

Solid submicron grain carbide end mill - center cutting
Extremely versatile
70 TiAlN Coated - page 261
6
d1 † d2 l1 l2
EDP# Diameter Shank Overall Flute
Decimal Metric Diameter Length Length
32050 .1250 1/8" 3.175 1/8" 2“ 3/8"
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt 32070 .1875 3/16" 4.763 3/16" 2-1/2“ 1/2"
Extrem Vielseitig 32090 .2500 1/4" 6.350 1/4" 2-1/2“ 5/8"
Vollradius Toleranz: +0,000 / –0,025 (+.000" –.001") 32110 .3750 3/8" 9.525 3/8" 3-1/2“ 3/4"
TiAlN-Beschichtet - Seite 261
32130 .5000 1/2" 12.700 1/2" 4" 1"

Fresa de submicrograno sólido carburo - corte centrado
Extremadamente versátil
Tolerancia de la cabeza esférica +0,000 / –0,025 (+.000" –.001")
Recubrimiento de TiAlN - Página 261

35
6
Fraises carbure submicrograin - coupe au centre
Utilisations variables
Tolerance du rayon de hemispherique +0,000 / –0,025 (+.000" –.001")
MATERIAL HARDNESS (Rc) Fresa sub-micrograno metallo duro - taglio al centro
Revêtement TiAlN - Page 261

Estremamente varsatile
Tolleranza del raggio +0,000 / –0,025 (+.000" –.001")
Rivestimento in TiAlN - Pagina 261

超细晶粒整体硬质合金立铣刀 - 中心切削
功能极多
半径允差 +0,000 /–0,025 (+.000"–.001")
TiAlN 涂层 - 261页
0
6

260 www.garrtool.com ® ® ® † Metric equivalents are for reference only
