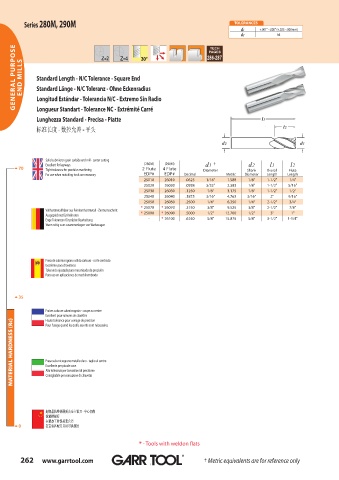

Series 280M, 290M TOLERANCES
d1 +.001" –.000" (+.025 –.000mm)
d2 h6

GENERAL PURPOSE END MILLS Standard Length - N/C Tolerance - Square End 286-287
Z2
=

Standard Länge - N/C Toleranz - Ohne Eckenradius

Longitud Estándar - Tolerancia N/C - Extremo Sin Radio
Longueur Standart - Tolerance NC - Extrémité Carré
Lunghezza Standard - Precisa - Piatte

标准长度 - 数控允差 平头
标准长度 - 数控允差 - 平头

Solid submicron grain carbide end mill - center cutting
Excellent for keyways (280M) (290M) d1 † d2 l1 l2
70 Tight tolerance for precision machining 2 Flute 4 Flute Diameter Shank Overall Flute
6
For use when matching tools are necessary EDP# EDP# Decimal Metric Diameter Length Length
25010 26010 .0625 1/16" 1.588 1/8" 1-1/2" 1/4"
25020 26020 .0938 3/32" 2.383 1/8" 1-1/2" 5/16"
25030 26030 .1250 1/8" 3.175 1/8" 1-1/2" 1/2"
25040 26040 .1875 3/16" 4.763 3/16" 2" 9/16"
25050 26050 .2500 1/4" 6.350 1/4" 2-1/2" 3/4"
* 25070 * 26070 .3750 3/8" 9.525 3/8" 2-1/2" 7/8"
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt
Ausgezeichnet für Keilnuten * 25090 * 26090 .5000 1/2" 12.700 1/2" 3" 1"
Enge Toleranzen für präzise Bearbeitung - * 26100 .6250 5/8" 15.875 5/8" 3-1/2" 1-1/4"
Wenn nötig zum zusammenlegen von Werkzeugen

Fresa de submicrograno sólido carburo - corte centrado
Excelente para chaveteras
Tolerancia ajustada para mecanizado de precisión
Para uso en aplicaciones de machihembrado

35
6

Fraises carbure submicrograin - coupe au centre
Excellent pour rainures de clavettes
Haute tolerance pour usinage de precision
MATERIAL HARDNESS (Rc) Fresa sub-micrograno metallo duro - taglio al centro
Pour l’usage quand les outils assortis sont nécessaires

Eccellente per piccole cave
Alta tolleranza per lavorazioni di precisione
Consigliabile per esecuzione di chiavette

超细晶粒整体硬质合金立铣刀 - 中心切削
铣键槽极好
在精加工时保持紧公差
0 在需要匹配刀具时可供使用
6
* - Tools with weldon flats

262 www.garrtool.com ® ® ® † Metric equivalents are for reference only
