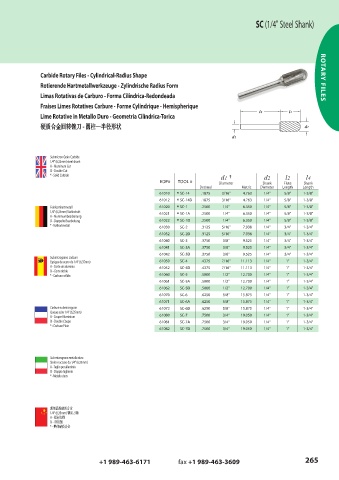

Page 265 - GARR_TOOL(CATALOG_INT)

SC (1/4" Steel Shank)

Carbide Rotary Files - Cylindrical-Radius Shape ROTARY FILES
Rotierende Hartmetallwerkzeuge - Zylindrische Radius Form
Limas Rotativas de Carburo - Forma Cilíndrica-Redondeada
Fraises Limes Rotatives Carbure - Forme Cylindrique - Hemispherique
Lime Rotative in Metallo Duro - Geometria Cilindrica-Torica

-
圆柱—半径形状
硬质合金回转锉刀
硬质合金回转锉刀 - 圆柱—半径形状

Submicron Grain Carbide
1/4" (6,35mm) steel shank
A - Aluminum Cut
D - Double Cut
* - Solid Carbide d1 † d2 l2 l4
EDP# TOOL # Diameter Shank Flute Shank
Decimal Metric Diameter Length Length
61010 * SC-14 .1875 3/16" 4.763 1/4" 5/8" 1-3/8"
61012 * SC-14D .1875 3/16" 4.763 1/4" 5/8" 1-3/8"
Feinkornhartmetall 61020 * SC-1 .2500 1/4" 6.350 1/4" 5/8" 1-3/8"
1/4" (6,35mm) Stahlschaft 61021 * SC-1A .2500 1/4" 6.350 1/4" 5/8" 1-3/8"
A - Aluminiumbearbeitung
D - Doppelte Bearbeitung 61022 * SC-1D .2500 1/4" 6.350 1/4" 5/8" 1-3/8"
* - Vollhartmetall 61030 SC-2 .3125 5/16" 7.938 1/4" 3/4" 1-3/4"
61032 SC-2D .3125 5/16" 7.938 1/4" 3/4" 1-3/4"
61040 SC-3 .3750 3/8" 9.525 1/4" 3/4" 1-3/4"
61041 SC-3A .3750 3/8" 9.525 1/4" 3/4" 1-3/4"
61042 SC-3D .3750 3/8" 9.525 1/4" 3/4" 1-3/4"
Submicrograno carburo
Espigas de acero de 1/4" (6,35mm) 61050 SC-4 .4375 7/16" 11.113 1/4" 1" 1-3/4"
A - Corte de aluminio 61052 SC-4D .4375 7/16" 11.113 1/4" 1" 1-3/4"
D - Corte doble
* - Carburo sólido 61060 SC-5 .5000 1/2" 12.700 1/4" 1" 1-3/4"
61061 SC-5A .5000 1/2" 12.700 1/4" 1" 1-3/4"
61062 SC-5D .5000 1/2" 12.700 1/4" 1" 1-3/4"
61070 SC-6 .6250 5/8" 15.875 1/4" 1" 1-3/4"
61071 SC-6A .6250 5/8" 15.875 1/4" 1" 1-3/4"
Carbure submicrograin 61072 SC-6D .6250 5/8" 15.875 1/4" 1" 1-3/4"
Queue acier 1/4" (6,35mm)
A - Coupe Aluminium 61080 SC-7 .7500 3/4" 19.050 1/4" 1" 1-3/4"
D - Double Coupe 61081 SC-7A .7500 3/4" 19.050 1/4" 1" 1-3/4"
* - Carbure Plein
61082 SC-7D .7500 3/4" 19.050 1/4" 1" 1-3/4"

Sub-micrograno metallo duro
Stelo in acciaio da 1/4" (6,35mm)
A - Taglio per alluminio
D - Doppio tagliente
* - Metallo duro

超细晶粒硬质合金
1/4" (6,35mm) 钢质刀柄
A - 铝材切削
D - 双切削
* - 整体硬质合金

+1 989-463-6171 fax +1 989-463-3609 265
