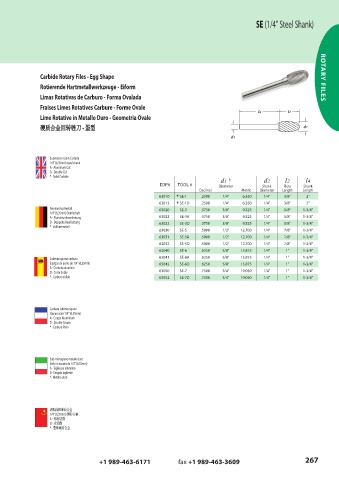

Page 267 - GARR_TOOL(CATALOG_INT)

SE (1/4" Steel Shank)

Carbide Rotary Files - Egg Shape ROTARY FILES
Rotierende Hartmetallwerkzeuge - Eiform
Limas Rotativas de Carburo - Forma Ovalada
Fraises Limes Rotatives Carbure - Forme Ovale

Lime Rotative in Metallo Duro - Geometria Ovale
硬质合金回转锉刀 - 蛋型
硬质合金回转锉刀 - 蛋型

Submicron Grain Carbide
1/4" (6,35mm) steel shank
A - Aluminum Cut
D - Double Cut
* - Solid Carbide d1 † d2 l2 l4
EDP# TOOL # Diameter Shank Flute Shank
Decimal Metric Diameter Length Length
63010 * SE-1 .2500 1/4" 6.350 1/4" 3/8" 2"
63012 * SE-1D .2500 1/4" 6.350 1/4" 3/8" 2"
Feinkornhartmetall 63020 SE-3 .3750 3/8" 9.525 1/4" 5/8" 1-3/4"
1/4" (6,35mm) Stahlschaft
A - Aluminiumbearbeitung 63021 SE-3A .3750 3/8" 9.525 1/4" 5/8" 1-3/4"
D - Doppelte Bearbeitung 63022 SE-3D .3750 3/8" 9.525 1/4" 5/8" 1-3/4"
* - Vollhartmetall
63030 SE-5 .5000 1/2" 12.700 1/4" 7/8" 1-3/4"
63031 SE-5A .5000 1/2" 12.700 1/4" 7/8" 1-3/4"
63032 SE-5D .5000 1/2" 12.700 1/4" 7/8" 1-3/4"
63040 SE-6 .6250 5/8" 15.875 1/4" 1" 1-3/4"
Submicrograno carburo 63041 SE-6A .6250 5/8" 15.875 1/4" 1" 1-3/4"
Espigas de acero de 1/4" (6,35mm) 63042 SE-6D .6250 5/8" 15.875 1/4" 1" 1-3/4"
A - Corte de aluminio
D - Corte doble 63050 SE-7 .7500 3/4" 19.050 1/4" 1" 1-3/4"
* - Carburo sólido 63052 SE-7D .7500 3/4" 19.050 1/4" 1" 1-3/4"

Carbure submicrograin
Queue acier 1/4" (6,35mm)
A - Coupe Aluminium
D - Double Coupe
* - Carbure Plein

Sub-micrograno metallo duro
Stelo in acciaio da 1/4" (6,35mm)
A - Taglio per alluminio
D - Doppio tagliente
* - Metallo duro

超细晶粒硬质合金
1/4" (6,35mm) 钢质刀柄
A - 铝材切削
D - 双切削
* - 整体硬质合金

+1 989-463-6171 fax +1 989-463-3609 267
