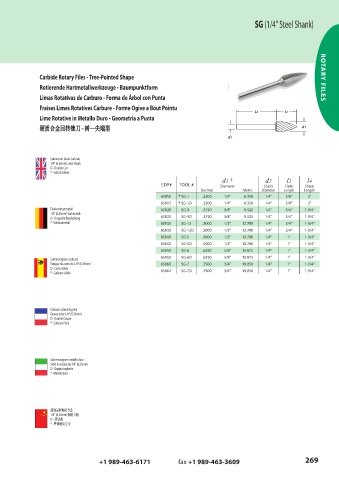

P. 269

SG (1/4" Steel Shank)










               Carbide Rotary Files - Tree-Pointed Shape                                                          ROTARY FILES
               Rotierende Hartmetallwerkzeuge - Baumpunktform
               Limas Rotativas de Carburo - Forma de Árbol con Punta

               Fraises Limes Rotatives Carbure - Forme Ogive a Bout Pointu
               Lime Rotative in Metallo Duro - Geometria a Punta
               硬质合金回转锉刀 - 树—尖端型
               硬质合金回转锉刀       -  树—尖端型




                   Submicron Grain Carbide
                   1/4" (6,35mm) steel shank
                   D - Double Cut
                   * - Solid Carbide
                                                                               d1  †          d2      l2     l4
                                                          EDP#  TOOL #        Diameter        Shank  Flute  Shank
                                                                        Decimal       Metric  Diameter  Length  Length
                                                         65010  * SG-1  .2500   1/4"   6.350  1/4"   5/8"    2"
                                                         65012  * SG-1D  .2500  1/4"   6.350  1/4"   5/8"    2"
                   Feinkornhartmetall                    65020   SG-3   .3750   3/8"   9.525  1/4"   3/4"   1-3/4"
                   1/4" (6,35mm) Stahlschaft
                   D - Doppelte Bearbeitung              65022   SG-3D  .3750   3/8"   9.525  1/4"   3/4"   1-3/4"
                   * - Vollhartmetall                    65030   SG-13  .5000   1/2"  12.700  1/4"   3/4"   1-3/4"
                                                         65032   SG-13D  .5000  1/2"  12.700  1/4"   3/4"   1-3/4"
                                                         65040   SG-5   .5000   1/2"  12.700  1/4"    1"    1-3/4"
                                                         65042   SG-5D  .5000   1/2"  12.700  1/4"    1"    1-3/4"
                                                         65050   SG-6   .6250   5/8"  15.875  1/4"    1"    1-3/4"
                   Submicrograno carburo                 65052   SG-6D  .6250   5/8"  15.875  1/4"    1"    1-3/4"
                   Espigas de acero de 1/4" (6,35mm)     65060   SG-7   .7500   3/4"  19.050  1/4"    1"    1-3/4"
                   D - Corte doble                       65062   SG-7D  .7500   3/4"  19.050  1/4"    1"    1-3/4"
                   * - Carburo sólido






                   Carbure submicrograin
                   Queue acier 1/4" (6,35mm)
                   D - Double Coupe
                   * - Carbure Plein






                   Sub-micrograno metallo duro
                   Stelo in acciaio da 1/4" (6,35mm)
                   D - Doppio tagliente
                   * - Metallo duro







                   超细晶粒硬质合金
                   1/4" (6,35mm) 钢质刀柄
                   D - 双切削
                   * - 整体硬质合金





                                    +1 989-463-6171                    fax +1 989-463-3609                  269
