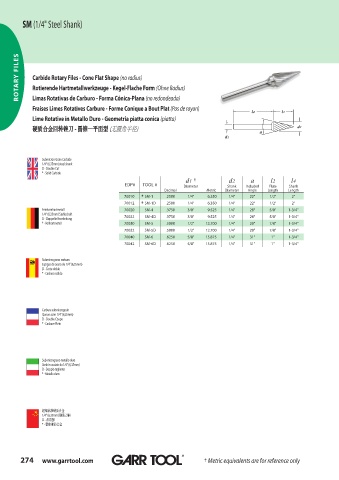

P. 274

SM (1/4" Steel Shank)






       ROTARY FILES  Carbide Rotary Files - Cone Flat Shape (no radius)




            Rotierende Hartmetallwerkzeuge - Kegel-Flache Form (Ohne Radius)

            Limas Rotativas de Carburo - Forma Cónica-Plana (no redondeada)
            Fraises Limes Rotatives Carbure - Forme Conique a Bout Plat (Pas de rayon)
            Lime Rotative in Metallo Duro - Geometria piatta conica (piatta)
                            -
            硬质合金回转锉刀 - 圆锥—平面型 (无圆角半径)

                            圆锥—平面型
            硬质合金回转锉刀

                Submicron Grain Carbide
                1/4" (6,35mm) steel shank
                D - Double Cut
                * - Solid Carbide
                                                                  d1  †          d2      a      l2     l4
                                             EDP#  TOOL #         Diameter       Shank  Included  Flute  Shank
                                                           Decimal        Metric  Diameter  Angle  Length  Length
                                             70010  *  SM-1  .2500  1/4"  6.350  1/4"    22°    1/2"    2"
                                             70012  *  SM-1D  .2500  1/4"  6.350  1/4"   22°    1/2"    2"
                Feinkornhartmetall           70020  SM-4   .3750   3/8"   9.525  1/4"    28°    5/8"  1-3/4"
                1/4" (6,35mm) Stahlschaft    70022  SM-4D  .3750   3/8"   9.525  1/4"    28°    5/8"  1-3/4"
                D - Doppelte Bearbeitung
                * - Vollhartmetall           70030  SM-5   .5000   1/2"  12.700  1/4"    28°    7/8"  1-3/4"
                                             70032  SM-5D  .5000   1/2"  12.700  1/4"    28°    7/8"  1-3/4"
                                             70040  SM-6   .6250   5/8"  15.875  1/4"    31°    1"    1-3/4"
                                             70042  SM-6D  .6250   5/8"  15.875  1/4"    31°    1"    1-3/4"

                Submicrograno carburo
                Espigas de acero de 1/4" (6,35mm)
                D - Corte doble
                * - Carburo sólido






                Carbure submicrograin
                Queue acier 1/4" (6,35mm)
                D - Double Coupe
                * - Carbure Plein






                Sub-micrograno metallo duro
                Stelo in acciaio da 1/4" (6,35mm)
                D - Doppio tagliente
                * - Metallo duro







                超细晶粒硬质合金
                1/4" (6,35mm) 钢质刀柄
                D - 双切削
                * - 整体硬质合金





        274     www.garrtool.com                                 ® ® ®   †  Metric equivalents are for reference only
