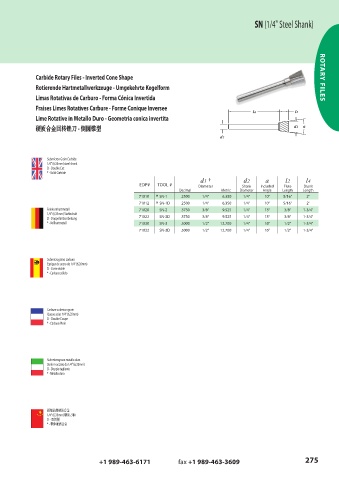

P. 275

SN (1/4" Steel Shank)










              Carbide Rotary Files - Inverted Cone Shape                                                          ROTARY FILES
              Rotierende Hartmetallwerkzeuge - Umgekehrte Kegelform
              Limas Rotativas de Carburo - Forma Cónica Invertida

              Fraises Limes Rotatives Carbure - Forme Conique Inversee
              Lime Rotative in Metallo Duro - Geometria conica invertita
              硬质合金回转锉刀 - 倒圆锥型
              硬质合金回转锉刀       -  倒圆锥型




                  Submicron Grain Carbide
                  1/4" (6,35mm) steel shank
                  D - Double Cut
                  * - Solid Carbide
                                                                       d1  †           d2     a      l2     l4
                                                   EDP#  TOOL #        Diameter       Shank  Included  Flute  Shank
                                                                Decimal        Metric  Diameter  Angle  Length  Length
                                                  71010  *  SN-1  .2500  1/4"  6.350  1/4"    10°    5/16"   2"
                                                  71012  *  SN-1D  .2500  1/4"  6.350  1/4"   10°    5/16"   2"
                  Feinkornhartmetall              71020  SN-2   .3750   3/8"   9.525  1/4"    13°    3/8"   1-3/4"
                  1/4" (6,35mm) Stahlschaft
                  D - Doppelte Bearbeitung        71022  SN-2D  .3750   3/8"   9.525  1/4"    13°    3/8"   1-3/4"
                  * - Vollhartmetall              71030  SN-3   .5000   1/2"  12.700  1/4"    16°    1/2"   1-3/4"
                                                  71032  SN-3D  .5000   1/2"  12.700  1/4"    16°    1/2"   1-3/4"




                  Submicrograno carburo
                  Espigas de acero de 1/4" (6,35mm)
                  D - Corte doble
                  * - Carburo sólido






                  Carbure submicrograin
                  Queue acier 1/4" (6,35mm)
                  D - Double Coupe
                  * - Carbure Plein






                  Sub-micrograno metallo duro
                  Stelo in acciaio da 1/4" (6,35mm)
                  D - Doppio tagliente
                  * - Metallo duro







                  超细晶粒硬质合金
                  1/4" (6,35mm) 钢质刀柄
                  D - 双切削
                  * - 整体硬质合金





                                    +1 989-463-6171                    fax +1 989-463-3609                  275
