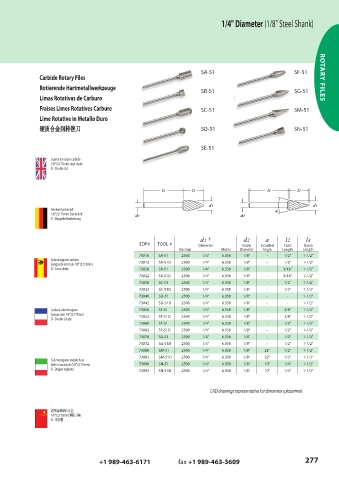

Page 277 - GARR_TOOL(CATALOG_INT)

1/4" Diameter (1/8" Steel Shank)

SA-51 SF-51
Carbide Rotary Files ROTARY FILES
Rotierende Hartmetallwerkzeuge SB-51 SG-51
Limas Rotativas de Carburo

Fraises Limes Rotatives Carbure SC-51 SM-51
Lime Rotative in Metallo Duro

硬质合金回转锉刀 SD-51 SN-51
硬质合金回转锉刀

SE-51
Submicron Grain Carbide
1/8" (3,175mm) steel shank
D - Double Cut

Feinkornhartmetall
1/8" (3,175mm) Stahlschaft
D - Doppelte Bearbeitung

d1 † d2 a l2 l4
EDP# TOOL # Diameter Shank Included Flute Shank
Decimal Metric Diameter Angle Length Length
73010 SA-51 .2500 1/4" 6.350 1/8" - 1/2" 1-1/2"
Submicrograno carburo 73012 SA-51D .2500 1/4" 6.350 1/8" - 1/2" 1-1/2"
Espigas de acero de 1/8" (3,175mm)
D - Corte doble 73020 SB-51 .2500 1/4" 6.350 1/8" - 3/16" 1-1/2"
73022 SB-51D .2500 1/4" 6.350 1/8" - 3/16" 1-1/2"
73030 SC-51 .2500 1/4" 6.350 1/8" - 1/2" 1-1/2"
73032 SC-51D .2500 1/4" 6.350 1/8" - 1/2" 1-1/2"
73040 SD-51 .2500 1/4" 6.350 1/8" - - 1-1/2"
73042 SD-51D .2500 1/4" 6.350 1/8" - - 1-1/2"
Carbure submicrograin 73050 SE-51 .2500 1/4" 6.350 1/8" - 3/8" 1-1/2"
Queue acier 1/8" (3,175mm) 73052 SE-51D .2500 1/4" 6.350 1/8" - 3/8" 1-1/2"
D - Double Coupe
73060 SF-51 .2500 1/4" 6.350 1/8" - 1/2" 1-1/2"
73062 SF-51D .2500 1/4" 6.350 1/8" - 1/2" 1-1/2"
73070 SG-51 .2500 1/4" 6.350 1/8" - 1/2" 1-1/2"
73072 SG-51D .2500 1/4" 6.350 1/8" - 1/2" 1-1/2"
73080 SM-51 .2500 1/4" 6.350 1/8" 22° 1/2" 1-1/2"
73082 SM-51D .2500 1/4" 6.350 1/8" 22° 1/2" 1-1/2"
Sub-micrograno metallo duro
Stelo in acciaio da 1/8" (3,175mm) 73090 SN-51 .2500 1/4" 6.350 1/8" 10° 1/4" 1-1/2"
D - Doppio tagliente 73092 SN-51D .2500 1/4" 6.350 1/8" 10° 1/4" 1-1/2"

CAD drawings representative for dimension placement

超细晶粒硬质合金
1/8" (3,175mm) 钢质刀柄
D - 双切削
