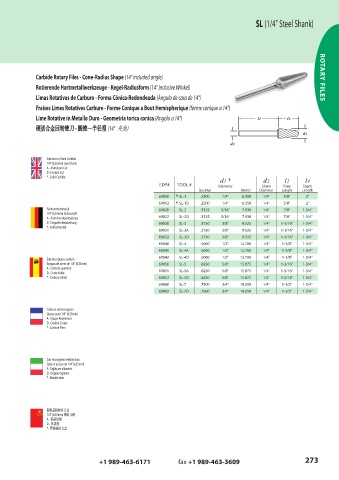

P. 273

SL (1/4" Steel Shank)










              Carbide Rotary Files - Cone-Radius Shape (14° included angle)                                       ROTARY FILES
              Rotierende Hartmetallwerkzeuge - Kegel-Radiusform (14° inclusive Winkel)
              Limas Rotativas de Carburo - Forma Cónica-Redondeada (Ángulo de cara de 14°)

              Fraises Limes Rotatives Carbure - Forme Conique a Bout Hemispherique (forme conique a 14°)
              Lime Rotative in Metallo Duro - Geometria torica conica (Angolo a 14°)
                            -
              硬质合金回转锉刀 - 圆锥—半径型 (14°  夹角)
                            圆锥—半径型
              硬质合金回转锉刀


                 Submicron Grain Carbide
                 1/4" (6,35mm) steel shank
                 A - Aluminum Cut
                 D - Double Cut
                 * - Solid Carbide                                            d1  †           d2     l2     l4
                                                          EDP#  TOOL #        Diameter       Shank   Flute  Shank
                                                                       Decimal        Metric  Diameter  Length  Length
                                                         69010  *  SL-1  .2500  1/4"  6.350  1/4"    5/8"   2"
                                                         69012  *  SL-1D  .2500  1/4"  6.350  1/4"   5/8"   2"
                 Feinkornhartmetall                      69020  SL-2   .3125   5/16"  7.938  1/4"    7/8"  1-3/4"
                 1/4" (6,35mm) Stahlschaft
                 A - Aluminiumbearbeitung                69022  SL-2D  .3125   5/16"  7.938  1/4"    7/8"  1-3/4"
                 D - Doppelte Bearbeitung                69030  SL-3   .3750   3/8"   9.525  1/4"   1-1/16"  1-3/4"
                 * - Vollhartmetall
                                                         69031  SL-3A  .3750   3/8"   9.525  1/4"   1-1/16"  1-3/4"
                                                         69032  SL-3D  .3750   3/8"   9.525  1/4"   1-1/16"  1-3/4"
                                                         69040  SL-4   .5000   1/2"  12.700  1/4"   1-1/8"  1-3/4"
                                                         69041  SL-4A  .5000   1/2"  12.700  1/4"   1-1/8"  1-3/4"
                 Submicrograno carburo                   69042  SL-4D  .5000   1/2"  12.700  1/4"   1-1/8"  1-3/4"
                 Espigas de acero de 1/4" (6,35mm)       69050  SL-5   .6250   5/8"  15.875  1/4"   1-3/16"  1-3/4"
                 A - Corte de aluminio                   69051  SL-5A  .6250   5/8"  15.875  1/4"   1-3/16"  1-3/4"
                 D - Corte doble
                 * - Carburo sólido                      69052  SL-5D  .6250   5/8"  15.875  1/4"   1-3/16"  1-3/4"
                                                         69060  SL-7   .7500   3/4"  19.050  1/4"   1-1/2"  1-3/4"
                                                         69062  SL-7D  .7500   3/4"  19.050  1/4"   1-1/2"  1-3/4"


                 Carbure submicrograin
                 Queue acier 1/4" (6,35mm)
                 A - Coupe Aluminium
                 D - Double Coupe
                 * - Carbure Plein





                 Sub-micrograno metallo duro
                 Stelo in acciaio da 1/4" (6,35mm)
                 A - Taglio per alluminio
                 D - Doppio tagliente
                 * - Metallo duro





                 超细晶粒硬质合金
                 1/4" (6,35mm) 钢质刀柄
                 A - 铝材切削
                 D - 双切削
                 * - 整体硬质合金
