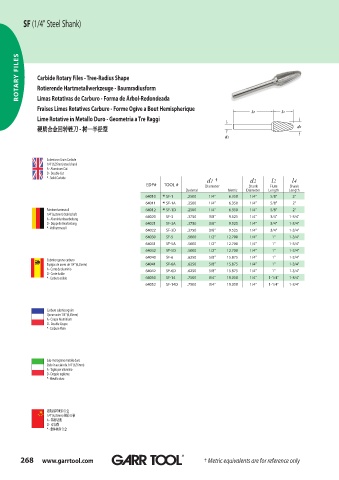

Page 268 - GARR_TOOL(CATALOG_INT)
P. 268

SF (1/4" Steel Shank)






       ROTARY FILES  Carbide Rotary Files - Tree-Radius Shape




              Rotierende Hartmetallwerkzeuge - Baumradiusform

              Limas Rotativas de Carburo - Forma de Árbol-Redondeada
              Fraises Limes Rotatives Carbure - Forme Ogive a Bout Hemispherique
              Lime Rotative in Metallo Duro - Geometria a Tre Raggi

              硬质合金回转锉刀 - 树—半径型
              硬质合金回转锉刀        -  树—半径型



                 Submicron Grain Carbide
                 1/4" (6,35mm) steel shank
                 A - Aluminum Cut
                 D - Double Cut
                 * - Solid Carbide                                        d1  †          d2     l2      l4
                                                     EDP#  TOOL #        Diameter       Shank   Flute  Shank
                                                                  Decimal        Metric  Diameter  Length  Length
                                                    64010  *  SF-1  .2500  1/4"  6.350   1/4"   5/8"    2"
                                                    64011  *  SF-1A  .2500  1/4"  6.350  1/4"   5/8"    2"
                 Feinkornhartmetall                 64012  *  SF-1D  .2500  1/4"  6.350  1/4"   5/8"    2"
                 1/4" (6,35mm) Stahlschaft          64020  SF-3    .3750  3/8"   9.525   1/4"   3/4"   1-3/4"
                 A - Aluminiumbearbeitung
                 D - Doppelte Bearbeitung           64021  SF-3A   .3750  3/8"   9.525   1/4"   3/4"   1-3/4"
                 * - Vollhartmetall
                                                    64022  SF-3D   .3750  3/8"   9.525   1/4"   3/4"   1-3/4"
                                                    64030  SF-5    .5000  1/2"   12.700  1/4"    1"    1-3/4"
                                                    64031  SF-5A   .5000  1/2"   12.700  1/4"    1"    1-3/4"
                                                    64032  SF-5D   .5000  1/2"   12.700  1/4"    1"    1-3/4"
                                                    64040  SF-6    .6250  5/8"   15.875  1/4"    1"    1-3/4"
                 Submicrograno carburo
                 Espigas de acero de 1/4" (6,35mm)  64041  SF-6A   .6250  5/8"   15.875  1/4"    1"    1-3/4"
                 A - Corte de aluminio              64042  SF-6D   .6250  5/8"   15.875  1/4"    1"    1-3/4"
                 D - Corte doble
                 * - Carburo sólido                 64050  SF-14   .7500  3/4"   19.050  1/4"  1-1/4"  1-3/4"
                                                    64052  SF-14D  .7500  3/4"   19.050  1/4"  1-1/4"  1-3/4"



                 Carbure submicrograin
                 Queue acier 1/4" (6,35mm)
                 A - Coupe Aluminium
                 D - Double Coupe
                 * - Carbure Plein





                 Sub-micrograno metallo duro
                 Stelo in acciaio da 1/4" (6,35mm)
                 A - Taglio per alluminio
                 D - Doppio tagliente
                 * - Metallo duro






                 超细晶粒硬质合金
                 1/4" (6,35mm) 钢质刀柄
                 A - 铝材切削
                 D - 双切削
                 * - 整体硬质合金
