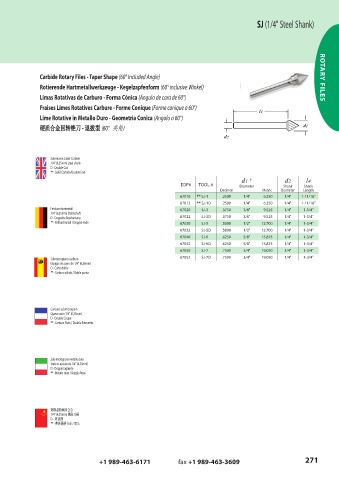

P. 271

SJ (1/4" Steel Shank)










               Carbide Rotary Files - Taper Shape (60° Included Angle)                                            ROTARY FILES
               Rotierende Hartmetallwerkzeuge - Kegelzapfenform (60° inclusive Winkel)
               Limas Rotativas de Carburo - Forma Cónica (Ángulo de cara de 60°)

               Fraises Limes Rotatives Carbure - Forme Conique (Forme conique a 60°)
               Lime Rotative in Metallo Duro - Geometria Conica (Angolo a 60°)

               硬质合金回转锉刀 - 退拔型 (60° 夹角)
                              -
                               退拔型
               硬质合金回转锉刀

                   Submicron Grain Carbide
                   1/4" (6,35mm) steel shank
                   D - Double Cut
                   ** - Solid Carbide/Double End
                                                                                      d1  †          d2      l4
                                                                 EDP#  TOOL #        Diameter        Shank  Shank
                                                                              Decimal        Metric  Diameter  Length
                                                                67010  ** SJ-1  .2500  1/4"   6.350  1/4"  1-11/16"
                                                                67012  ** SJ-1D  .2500  1/4"  6.350  1/4"  1-11/16"
                   Feinkornhartmetall                           67020   SJ-3   .3750   3/8"   9.525  1/4"   1-3/4"
                   1/4" (6,35mm) Stahlschaft
                   D - Doppelte Bearbeitung                     67022   SJ-3D  .3750   3/8"   9.525  1/4"   1-3/4"
                   ** - Vollhartmetall / Doppel ende            67030   SJ-5   .5000   1/2"  12.700  1/4"   1-3/4"
                                                                67032   SJ-5D  .5000   1/2"  12.700  1/4"   1-3/4"
                                                                67040   SJ-6   .6250   5/8"  15.875  1/4"   1-3/4"
                                                                67042   SJ-6D  .6250   5/8"  15.875  1/4"   1-3/4"
                                                                67050   SJ-7   .7500   3/4"  19.050  1/4"   1-3/4"
                   Submicrograno carburo                        67052   SJ-7D  .7500   3/4"  19.050  1/4"   1-3/4"
                   Espigas de acero de 1/4" (6,35mm)
                   D - Corte doble
                   ** - Carburo sólido / Doble punta






                   Carbure submicrograin
                   Queue acier 1/4" (6,35mm)
                   D - Double Coupe
                   ** - Carbure Plein / Double Extremite






                   Sub-micrograno metallo duro
                   Stelo in acciaio da 1/4" (6,35mm)
                   D - Doppio tagliente
                   ** - Metallo duro / Doppia fresa






                   超细晶粒硬质合金
                   1/4" (6,35mm) 钢质刀柄
                   D - 双切削
                   ** - 整体硬质合金 / 双头






                                    +1 989-463-6171                    fax +1 989-463-3609                  271
