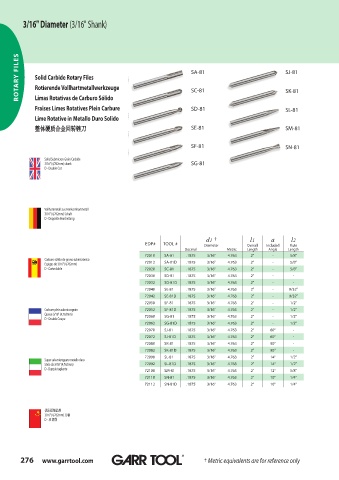

Page 276 - GARR_TOOL(CATALOG_INT)

3/16" Diameter (3/16" Shank)

ROTARY FILES Solid Carbide Rotary Files SA-81 SJ-81

Rotierende Vollhartmetallwerkzeuge
SC-81
SK-81
Limas Rotativas de Carburo Sólido
Fraises Limes Rotatives Plein Carbure SD-81 SL-81
Lime Rotative in Metallo Duro Solido
整体硬质合金回转锉刀
整体硬质合金回转锉刀 SE-81 SM-81

SF-81 SN-81

Solid Submicron Grain Carbide
3/16" (4,762mm) shank SG-81
D - Double Cut

Vollhartmetall aus Feinkornhartmetall
3/16" (4,762mm) Schaft
D - Doppelte Bearbeitung

d1 † l1 a l2
EDP# TOOL # Diameter Overall Included Flute
Decimal Metric Length Angle Length
72010 SA-81 .1875 3/16" 4.763 2" - 5/8"
Carburo sólido de grano submicrónico
Espigas de 3/16" (4,762mm) 72012 SA-81D .1875 3/16" 4.763 2" - 5/8"
D - Corte doble 72020 SC-81 .1875 3/16" 4.763 2" - 5/8"
72030 SD-81 .1875 3/16" 4.763 2" - -
72032 SD-81D .1875 3/16" 4.763 2" - -
72040 SE-81 .1875 3/16" 4.763 2" - 9/32"
72042 SE-81D .1875 3/16" 4.763 2" - 9/32"
72050 SF-81 .1875 3/16" 4.763 2" - 1/2"
Carbure plein submicrograin 72052 SF-81D .1875 3/16" 4.763 2" - 1/2"
Queue 3/16" (4,762mm) 72060 SG-81 .1875 3/16" 4.763 2" - 1/2"
D - Double Coupe
72062 SG-81D .1875 3/16" 4.763 2" - 1/2"
72070 SJ-81 .1875 3/16" 4.763 2" 60° -
72072 SJ-81D .1875 3/16" 4.763 2" 60° -
72080 SK-81 .1875 3/16" 4.763 2" 90° -
72082 SK-81D .1875 3/16" 4.763 2" 90° -
72090 SL-81 .1875 3/16" 4.763 2" 14° 1/2"
Super sub-micrograno metallo duro
Stelo da 3/16" (4,762mm) 72092 SL-81D .1875 3/16" 4.763 2" 14° 1/2"
D - Doppio tagliente 72100 SM-81 .1875 3/16" 4.763 2" 12° 5/8"
72110 SN-81 .1875 3/16" 4.763 2" 10° 1/4"
72112 SN-81D .1875 3/16" 4.763 2" 10° 1/4"

优质超细晶粒
3/16" (4,762mm) 刀柄
D - 双切削

276 www.garrtool.com ® ® ® † Metric equivalents are for reference only
