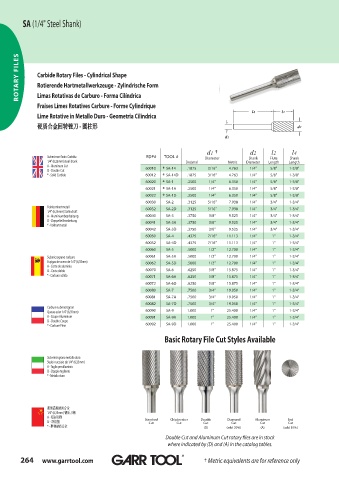

Page 264 - GARR_TOOL(CATALOG_INT)

SA (1/4" Steel Shank)

ROTARY FILES Carbide Rotary Files - Cylindrical Shape

Rotierende Hartmetallwerkzeuge - Zylindrische Form
Limas Rotativas de Carburo - Forma Cilíndrica
Fraises Limes Rotatives Carbure - Forme Cylindrique
Lime Rotative in Metallo Duro - Geometria Cilindrica

硬质合金回转锉刀 - 圆柱形
硬质合金回转锉刀 - 圆柱形

d1 † d2 l2 l4
Submicron Grain Carbide EDP# TOOL # Diameter Shank Flute Shank
1/4" (6,35mm) steel shank Decimal Metric Diameter Length Length
A - Aluminum Cut 60010 * SA-14 .1875 3/16" 4.763 1/4" 5/8" 1-3/8"
D - Double Cut
* - Solid Carbide 60012 * SA-14D .1875 3/16" 4.763 1/4" 5/8" 1-3/8"
60020 * SA-1 .2500 1/4" 6.350 1/4" 5/8" 1-3/8"
60021 * SA-1A .2500 1/4" 6.350 1/4" 5/8" 1-3/8"
60022 * SA-1D .2500 1/4" 6.350 1/4" 5/8" 1-3/8"
60030 SA-2 .3125 5/16" 7.938 1/4" 3/4" 1-3/4"
Feinkornhartmetall 60032 SA-2D .3125 5/16" 7.938 1/4" 3/4" 1-3/4"
1/4" (6,35mm) Stahlschaft
A - Aluminiumbearbeitung 60040 SA-3 .3750 3/8" 9.525 1/4" 3/4" 1-3/4"
D - Doppelte Bearbeitung 60041 SA-3A .3750 3/8" 9.525 1/4" 3/4" 1-3/4"
* - Vollhartmetall
60042 SA-3D .3750 3/8" 9.525 1/4" 3/4" 1-3/4"
60050 SA-4 .4375 7/16" 11.113 1/4" 1" 1-3/4"
60052 SA-4D .4375 7/16" 11.113 1/4" 1" 1-3/4"
60060 SA-5 .5000 1/2" 12.700 1/4" 1" 1-3/4"
Submicrograno carburo 60061 SA-5A .5000 1/2" 12.700 1/4" 1" 1-3/4"
Espigas de acero de 1/4" (6,35mm) 60062 SA-5D .5000 1/2" 12.700 1/4" 1" 1-3/4"
A - Corte de aluminio
D - Corte doble 60070 SA-6 .6250 5/8" 15.875 1/4" 1" 1-3/4"
* - Carburo sólido 60071 SA-6A .6250 5/8" 15.875 1/4" 1" 1-3/4"
60072 SA-6D .6250 5/8" 15.875 1/4" 1" 1-3/4"
60080 SA-7 .7500 3/4" 19.050 1/4" 1" 1-3/4"
60081 SA-7A .7500 3/4" 19.050 1/4" 1" 1-3/4"
60082 SA-7D .7500 3/4" 19.050 1/4" 1" 1-3/4"
Carbure submicrograin
Queue acier 1/4" (6,35mm) 60090 SA-9 1.000 1" 25.400 1/4" 1" 1-3/4"
A - Coupe Aluminium 60091 SA-9A 1.000 1" 25.400 1/4" 1" 1-3/4"
D - Double Coupe
* - Carbure Plein 60092 SA-9D 1.000 1" 25.400 1/4" 1" 1-3/4"
Basic Rotary File Cut Styles Available

Sub-micrograno metallo duro
Stelo in acciaio da 1/4" (6,35mm)
A - Taglio per alluminio
D - Doppio tagliente
* - Metallo duro

超细晶粒硬质合金
1/4" (6,35mm) 钢质刀柄
A - 铝材切削 Standard Chipbreaker Double Diamond Aluminum End
D - 双切削 Cut Cut Cut Cut Cut Cut
* - 整体硬质合金 (D) (add 20%) (A) (add 10%)
Double Cut and Aluminum Cut rotary files are in stock
where indicated by (D) and (A) in the catalog tables.

264 www.garrtool.com ® ® ® † Metric equivalents are for reference only
