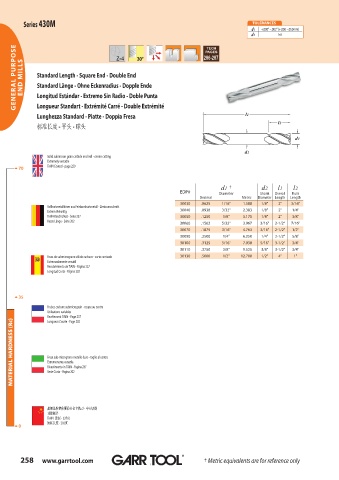

Series 430M TOLERANCES
d1 +.000" –.002" (+.000 –.050mm)
d2 h6

GENERAL PURPOSE END MILLS Standard Length - Square End - Double End 286-287

Standard Länge - Ohne Eckenradius - Dopple Ende
Longitud Estándar - Extremo Sin Radio - Doble Punta
Longueur Standart - Extrémité Carré - Double Extrémité
Lunghezza Standard - Piatte - Doppia Fresa

标准长度 - 平头 - 球头
标准长度 平头 球头

Solid submicron grain carbide end mill - center cutting
Extremely versatile
70 TiAlN Coated - page 259
6

d1 † d2 l1 l2
EDP# Diameter Shank Overall Flute
Decimal Metric Diameter Length Length
30030 .0625 1/16" 1.588 1/8" 2“ 3/16"
Vollhartmetallfräser aus Feinkornhartmetall - Zentrumsschnitt
Extrem Vielseitig 30040 .0938 3/32" 2.383 1/8" 2“ 1/4"
TiAlN-Beschichtet - Seite 237 30050 .1250 1/8" 3.175 1/8" 2“ 3/8"
Kurze Länge - Seite 202
30060 .1562 5/32" 3.967 3/16" 2-1/2“ 7/16"
30070 .1875 3/16" 4.763 3/16" 2-1/2“ 1/2"
30090 .2500 1/4" 6.350 1/4" 2-1/2“ 5/8"
30100 .3125 5/16" 7.938 5/16" 3-1/2“ 3/4"
30110 .3750 3/8" 9.525 3/8" 3-1/2“ 3/4"
Fresa de submicrograno sólido carburo - corte centrado 30130 .5000 1/2" 12.700 1/2" 4" 1"
Extremadamente versátil
Recubrimiento de TiAlN - Página 237
Longitud Corta - Página 202

35
6
Fraises carbure submicrograin - coupe au centre
Utilisations variables
Revêtement TiAlN - Page 237
MATERIAL HARDNESS (Rc) Fresa sub-micrograno metallo duro - taglio al centro
Longueur Courte - Page 202

Estremamente varsatile
Rivestimento in TiAlN - Pagina 237
Serie Corta - Pagina 202

超细晶粒整体硬质合金立铣刀 - 中心切削
功能极多
TiAlN 涂层 - 237页
短柱长度
短柱长度 - 202页
0
6
