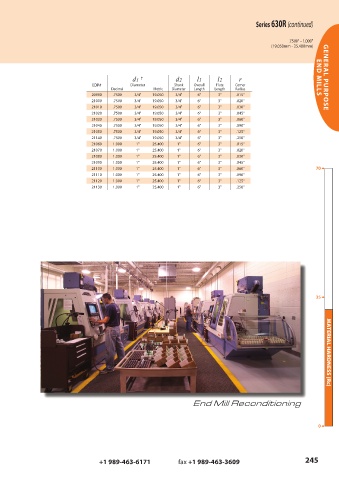

P. 245
Series 630R (continued)
.7500" - 1.000"
(19.050mm - 25.400mm)
d1 † d2 l1 l2 r END MILLS GENERAL PURPOSE
EDP# Diameter Shank Overall Flute Corner
Decimal Metric Diameter Length Length Radius
20990 .7500 3/4" 19.050 3/4" 6" 3" .015"
21000 .7500 3/4" 19.050 3/4" 6" 3" .020"
21010 .7500 3/4" 19.050 3/4" 6" 3" .030"
21020 .7500 3/4" 19.050 3/4" 6" 3" .045"
21030 .7500 3/4" 19.050 3/4" 6" 3" .060"
21040 .7500 3/4" 19.050 3/4" 6" 3" .090"
21050 .7500 3/4" 19.050 3/4" 6" 3" .125"
21140 .7500 3/4" 19.050 3/4" 6" 3" .250"
21060 1.000 1" 25.400 1" 6" 3" .015"
21070 1.000 1" 25.400 1" 6" 3" .020"
21080 1.000 1" 25.400 1" 6" 3" .030"
21090 1.000 1" 25.400 1" 6" 3" .045"
21100 1.000 1" 25.400 1" 6" 3" .060" 70 6
21110 1.000 1" 25.400 1" 6" 3" .090"
21120 1.000 1" 25.400 1" 6" 3" .125"
21130 1.000 1" 25.400 1" 6" 3" .250"
35 6
End Mill Reconditioning MATERIAL HARDNESS (Rc)
0 6
+1 989-463-6171 fax +1 989-463-3609 245
