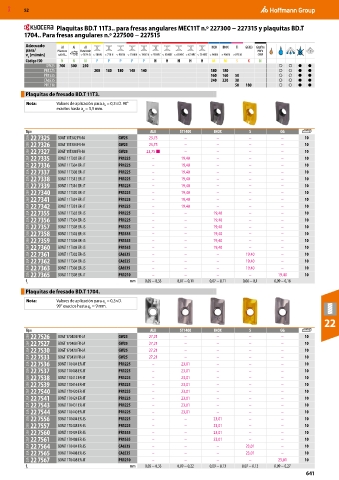

MXD 52

Plaquitas BD.T 11T3.. para fresas angulares MEC11T n.º 227300 − 227315 y plaquitas BD.T
1704.. Para fresas angulares n.º 227500 − 227515

Adecuado
para/
v [m/min]
c
Código ISO N N N P P P P P H H H H H M M S K N
GW25 700 500 250 ○ ○ ● ●
PR1225 200 180 180 140 140 180 180 ○ ○ ● ●
PR1535 160 160 50 ○ ○ ● ●
CA6535 240 220 30 ○ ○ ● ●
PR1210 50 180 ○ ○ ● ●
Plaquitas de fresado BD.T 11T3.
Nota: Valores de aplicación para a = 0,3×D. 90°
e
exactos hasta a = 5,5 mm.
p

Tipo ALU ST1400 INOX S GG
25A 22 7325 BDGT 11T302 FR-JA GW25 23,75 – – – – 10
25A 22 7326 BDGT 11T304 FR-JA GW25 23,75 – – – – 10
25A 22 7327 BDGT 11T308 FR-JA GW25 23,75 ■ – – – – 10
25A 22 7335 BDMT 11T302 ER-JT PR1225 – 19,40 – – – 10
25A 22 7336 BDMT 11T304 ER-JT PR1225 – 19,40 – – – 10
25A 22 7337 BDMT 11T308 ER-JT PR1225 – 19,40 – – – 10
25A 22 7338 BDMT 11T312 ER-JT PR1225 – 19,40 – – – 10
25A 22 7339 BDMT 11T316 ER-JT PR1225 – 19,40 – – – 10
25A 22 7340 BDMT 11T320 ER-JT PR1225 – 19,40 – – – 10
25A 22 7341 BDMT 11T324 ER-JT PR1225 – 19,40 – – – 10
25A 22 7342 BDMT 11T331 ER-JT PR1225 – 19,40 – – – 10
25A 22 7355 BDMT 11T302 ER-JS PR1225 – – 19,40 – – 10
25A 22 7356 BDMT 11T304 ER-JS PR1225 – – 19,40 – – 10
25A 22 7357 BDMT 11T308 ER-JS PR1225 – – 19,40 – – 10
25A 22 7358 BDMT 11T302 ER-JS PR1535 – – 19,40 – – 10
25A 22 7359 BDMT 11T304 ER-JS PR1535 – – 19,40 – – 10
25A 22 7360 BDMT 11T308 ER-JS PR1535 – – 19,40 – – 10
25A 22 7361 BDMT 11T302 ER-JS CA6535 – – – 19,40 – 10
25A 22 7362 BDMT 11T304 ER-JS CA6535 – – – 19,40 – 10
25A 22 7363 BDMT 11T308 ER-JS CA6535 – – – 19,40 – 10
25A 22 7365 BDMT 11T308 ER-JT PR1210 – – – – 19,40 10
mm 0,05 − 0,33 0,07 − 0,11 0,07 − 0,11 0,06 − 0,1 0,09 − 0,16
f z
Plaquitas de fresado BD.T 1704.
Nota: Valores de aplicación para a = 0,3×D.
e
90° exactos hasta a = 9 mm.
p
22
Tipo ALU ST1400 INOX S GG
25A 22 7526 BDGT 170404 FR-JA GW25 27,21 – – – – 10
25A 22 7527 BDGT 170408 FR-JA GW25 27,21 – – – – 10
25A 22 7530 BDGT 170420 FR-JA GW25 27,21 – – – – 10
25A 22 7533 BDGT 170431 FR-JA GW25 27,21 – – – – 10
25A 22 7536 BDMT 170404 ER-JT PR1225 – 23,01 – – – 10
25A 22 7537 BDMT 170408 ER-JT PR1225 – 23,01 – – – 10
25A 22 7538 BDMT 170412 ER-JT PR1225 – 23,01 – – – 10
25A 22 7539 BDMT 170416 ER-JT PR1225 – 23,01 – – – 10
25A 22 7540 BDMT 170420 ER-JT PR1225 – 23,01 – – – 10
25A 22 7541 BDMT 170424 ER-JT PR1225 – 23,01 – – – 10
25A 22 7543 BDMT 170431 ER-JT PR1225 – 23,01 – – – 10
25A 22 7544 BDMT 170440 ER-JT PR1225 – 23,01 – – – 10
25A 22 7556 BDMT 170404 ER-JS PR1225 – – 23,01 – – 10
25A 22 7557 BDMT 170408 ER-JS PR1225 – – 23,01 – – 10
25A 22 7560 BDMT 170404 ER-JS PR1535 – – 23,01 – – 10
25A 22 7561 BDMT 170408 ER-JS PR1535 – – 23,01 – – 10
25A 22 7564 BDMT 170404 ER-JS CA6535 – – – 23,01 – 10
25A 22 7565 BDMT 170408 ER-JS CA6535 – – – 23,01 – 10
25A 22 7567 BDMT 170408 ER-JT PR1210 – – – – 23,01 10
mm 0,05 − 0,33 0,09 − 0,22 0,09 − 0,13 0,07 − 0,13 0,09 − 0,27
f z
