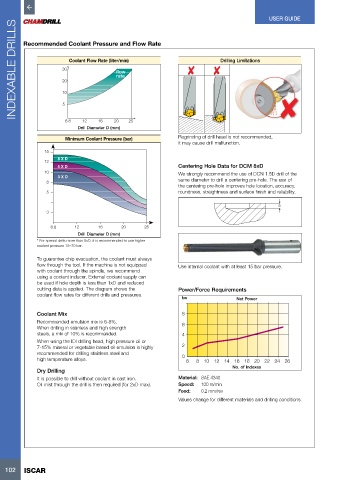

P. 104

USER GUIDE
      INDEXABLE DRILLS  30  Coolant Flow Rate (liter/min)                     Drilling Limitations



         Recommended Coolant Pressure and Flow Rate




                                          flow
                                          rate
                       20

                       10
                       5


                        6.8   12   16    20   25
                            Drill Diameter D (mm)

                        Minimum Coolant Pressure (bar)          Regrinding of drill head is not recommended,
                                                                it may cause drill malfunction.
                 15
                     8 X D
                 12
                     5 X D                                      Centering Hole Data for DCM 8xD
                 10                                             We strongly recommend the use of DCN 1.5D drill of the
                     3 X D
                 8                                              same diameter to drill a centering pre-hole. The use of
                                                                the centering pre-hole improves hole location, accuracy,
                 5                                              roundness, straightness and surface finish and reliability.
                                                                                                   5
                 3

                   6.8     12      16       20      25
                            Drill Diameter D (mm)
              * For special drills more than 8xD, it is recommended to use higher
              coolant pressure 15–70 bar.

              To guarantee chip evacuation, the coolant must always
              flow through the tool. If the machine is not equipped   Use internal coolant with at least 15 bar pressure.
              with coolant through the spindle, we recommend
              using a coolant inducer. External coolant supply can
              be used if hole depth is less than 1xD and reduced
              cutting data is applied. The diagram shows the    Power/Force Requirements
              coolant flow rates for different drills and pressures.
                                                                 kw                 Net Power

              Coolant Mix                                        8
              Recommended emulsion mix is 6-8%.                  6
              When drilling in stainless and high strength
              steels, a mix of 10% is recommended.               4
              When using the IDI drilling head, high pressure oil or
              7-15% mineral or vegetable based oil emulsion is highly   2
              recommended for drilling stainless steel and
              high temperature alloys.                           0  6  8  10  12  14  16  18  20  22  24  26
                                                                                   No. of Indexes
              Dry Drilling
              It is possible to drill without coolant in cast iron.    Material: SAE 4340
              Oil mist through the drill is then required (for 2xD max).  Speed:  100 m/min
                                                                Feed:   0.2 mm/rev
                                                                Values change for different materials and drilling conditions.
