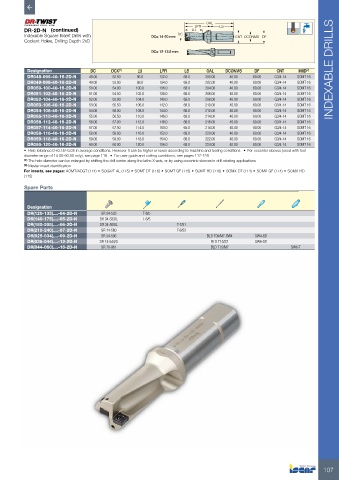

P. 109

OAL
                                                                     LPR      LS
          DR-2D-N (continued)                                       LU
          Indexable Square Insert Drills with         DC= 14-60 mm  DC              CNT  DCONMS  DF
          Coolant Holes, Drilling Depth 2xD
                                                      DC= 12-13.5 mm


           Designation           DC     DCX (1)  LU      LPR      LS      OAL   DCONMS    DF      CNT     MIID (2)    INDEXABLE DRILLS
           DR048-096-40-16-2D-N  48.00   52.50   96.0    132.0    68.0   200.00   40.00   60.00  G3/4-14  SOMT 16
           DR049-098-40-16-2D-N  49.00   53.00   98.0    134.0    68.0   202.00   40.00   60.00  G3/4-14  SOMT 16
           DR050-100-40-16-2D-N  50.00   54.00   100.0   136.0    68.0   204.00   40.00   60.00  G3/4-14  SOMT 16
           DR051-102-40-16-2D-N  51.00   54.50   102.0   138.0    68.0   206.00   40.00   60.00  G3/4-14  SOMT 16
           DR052-104-40-16-2D-N  52.00   55.00   104.0   140.0    68.0   208.00   40.00   60.00  G3/4-14  SOMT 16
           DR053-106-40-16-2D-N  53.00   55.50   106.0   142.0    68.0   210.00   40.00   60.00  G3/4-14  SOMT 16
           DR054-108-40-16-2D-N  54.00   56.00   108.0   144.0    68.0   212.00   40.00   60.00  G3/4-14  SOMT 16
           DR055-110-40-16-2D-N  55.00   56.50   110.0   146.0    68.0   214.00   40.00   60.00  G3/4-14  SOMT 16
           DR056-112-40-16-2D-N  56.00   57.00   112.0   148.0    68.0   216.00   40.00   60.00  G3/4-14  SOMT 16
           DR057-114-40-16-2D-N  57.00   57.50   114.0   150.0    68.0   218.00   40.00   60.00  G3/4-14  SOMT 16
           DR058-116-40-16-2D-N  58.00   58.00   116.0   152.0    68.0   220.00   40.00   60.00  G3/4-14  SOMT 16
           DR059-118-40-16-2D-N  59.00   59.00   118.0   154.0    68.0   222.00   40.00   60.00  G3/4-14  SOMT 16
           DR060-120-40-16-2D-N  60.00   60.00   120.0   156.0    68.0   224.00   40.00   60.00  G3/4-14  SOMT 16
          •  Hole tolerance D+0.15/-0.05 in average conditions. However it can be higher or lower according to machine and tooling conditions   •  For eccenter sleeves (used with tool
          diameter range of 14.00-60.00 only), see page 118   •  For user guide and cutting conditions, see pages 117-128
          (1)  The hole diameter can be enlarged by shifting the drill center along the lathe X-axis, or by using eccentric sleeves in drill rotating applications
          (2)  Master insert identification
          For inserts, see pages: AOMT/AOGT (114) • SOGX/T-AL (115) • SOMT-DT (116) • SOMT-GF (115) • SOMT-HD (116) • SOMX-DT (114) • SOMX-GF (114) • SOMX-HD
          (115)
          Spare Parts



           Designation
           DR(120-135)....-04-2D-N   SR 34-533     T-6/5
           DR(140-175)....-05-2D-N  SR 34-533/L    T-6/5
           DR(180-205)....-06-2D-N  SR 34-508/L                T-7/51
           DR(210-240)....-07-2D-N   SR 14-560                 T-8/53
           DR(025-034)....-09-2D-N   SR 34-506                            BLD T09/M7-SW4   SW4-SD
           DR(035-044)....-12-2D-N  SR 14-544/S                            BLD T15/S7      SW6-SD
           DR(044-060)....-16-2D-N   SR 76-961                             BLD T15/M7                  SW6-T
