Page 149 - ISCAR(HOLE_MAKING_CATALOG_65)

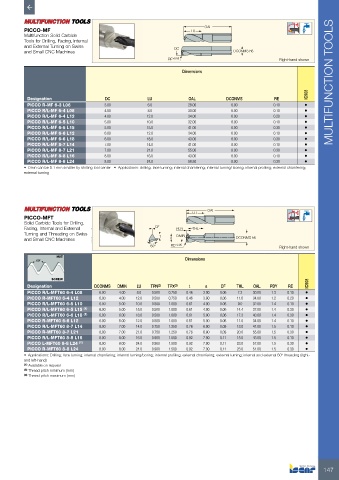

P. 149

OAL
          PICCO-MF                                                  LU
          Multifunction Solid Carbide
            Tools for Drilling, Facing, Internal
          and External Turning on Swiss                       DC
          and Small CNC Machines                                                   DCONMS h6
                                                            RE +0.05                               Right-hand shown

                                                                 Dimensions                                           MULTIFUNCTION TOOLS



                                                                                                             IC908
           Designation                DC             LU            OAL          DCONMS           RE
           PICCO R-MF 6-3 L06         3.00           6.0           28.00          6.00           0.10       •
           PICCO R/L-MF 6-4 L08       4.00           8.0           30.00          6.00           0.10       •
           PICCO R/L-MF 6-4 L12       4.00           12.0          34.00          6.00           0.20       •
           PICCO R/L-MF 6-5 L10       5.00           10.0          32.00          6.00           0.10       •
           PICCO R/L-MF 6-5 L15       5.00           15.0          41.00          6.00           0.30       •
           PICCO R/L-MF 6-6 L12       6.00           12.0          34.00          6.00           0.10       •
           PICCO R/L-MF 6-6 L18       6.00           18.0          43.00          6.00           0.30       •
           PICCO R/L-MF 8-7 L14       7.00           14.0          41.00          8.00           0.10       •
           PICCO R/L-MF 8-7 L21       7.00           21.0          55.00          8.00           0.30       •
           PICCO R/L-MF 8-8 L16       8.00           16.0          43.00          8.00           0.10       •
           PICCO R/L-MF 8-8 L24       8.00           24.0          58.50          8.00           0.30       •
          •  Dmin can be 0.1 mm smaller by shifting tool center   •  Applications: drilling; face turning; internal chamfering; internal turning/ boring; internal profiling; external chamfering;
          external turning






                                                                          OAL
                                                                     LU

          PICCO-MFT
          Solid Carbide Tools for Drilling,
          Facing, Internal and External                CF      PDY   THL
          Turning and Threading on Swiss                 t     DMIN
          and Small CNC Machines                             a                      DCONMS h6
                                                      60°    RE +0.05                              Right-hand shown
                     NUT
              60°                                                 Dimensions


                   SCREW
           Designation            DCONMS  DMIN   LU   TPN (2)  TPX (3)  t  a   CF   THL   OAL   PDY   RE     IC908
           PICCO R/L-MFT60 6-4 L08  6.00   4.00  8.0  0.500  0.750  0.46  3.90  0.06  7.3  30.00  1.3  0.10  •
           PICCO R-MFT60 6-4 L12    6.00   4.00  12.0  0.500  0.750  0.46  3.90  0.06  11.6  34.00  1.2  0.20  •
           PICCO R/L-MFT60 6-5 L10  6.00   5.00  10.0  0.500  1.000  0.61  4.90  0.06  9.0  32.00  1.4  0.10  •
           PICCO R/L-MFT60 6-5 L15  (1)  6.00  5.00  15.0  0.500  1.000  0.61  4.90  0.06  14.4  37.00  1.4  0.30  •
           PICCO R/L-MFT60 6-6 L18  (1)  6.00  6.00  18.0  0.500  1.000  0.61  5.90  0.06  17.3  43.00  1.4  0.30  •
           PICCO R-MFT60 6-6 L12    6.00   6.00  12.0  0.500  1.000  0.61  5.90  0.06  11.0  34.00  1.4  0.10  •
           PICCO R/L-MFT60 8-7 L14  8.00   7.00  14.0  0.750  1.250  0.76  6.90  0.09  13.0  41.00  1.5  0.10  •
           PICCO R-MFT60 8-7 L21    8.00   7.00  21.0  0.750  1.250  0.76  6.90  0.09  20.0  55.00  1.5  0.30  •
           PICCO R/L-MFT60 8-8 L16  8.00   8.00  16.0  0.900  1.500  0.92  7.90  0.11  15.0  43.00  1.5  0.10  •
           PICCO L-MFT60 8-8 L24  (1)  8.00  8.00  24.0  0.900  1.500  0.92  7.90  0.11  23.0  57.00  1.5  0.30  •
           PICCO R-MFT60 8-8 L24    8.00   8.00  24.0  0.900  1.500  0.92  7.90  0.11  23.0  51.00  1.5  0.30  •
          •  Applications: Drilling; face turning; internal chamfering; internal turning/boring; internal profiling; external chamfering; external turning; internal and external 60° threading (right-
          and left-hand)
          (1)  Available on request
          (2)  Thread pitch minimum (mm)
          (3)  Thread pitch maximum (mm)
