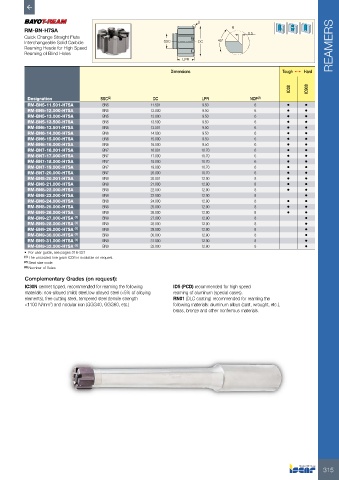

Page 317 - ISCAR(HOLE_MAKING_CATALOG_65)

V
V
RM-BN-H7SA 0.5
Quick Change Straight Flute
Interchangeable Solid Carbide SSC DC 45°
Reaming Heads for High Speed REAMERS
Reaming of Blind Holes
LPR

Dimensions Tough 1 Hard

IC08 IC908
Designation SSC (2) DC LPR NOF (3)
RM-BN5-11.501-H7SA BN5 11.501 9.50 6 • •
RM-BN5-12.000-H7SA BN5 12.000 9.50 6 • •
RM-BN5-13.000-H7SA BN5 13.000 9.50 6 • •
RM-BN5-13.500-H7SA BN5 13.500 9.50 6 • •
RM-BN6-13.501-H7SA BN6 13.501 9.50 6 • •
RM-BN6-14.000-H7SA BN6 14.000 9.50 6 • •
RM-BN6-15.000-H7SA BN6 15.000 9.50 6 • •
RM-BN6-16.000-H7SA BN6 16.000 9.50 6 • •
RM-BN7-16.001-H7SA BN7 16.001 10.70 6 • •
RM-BN7-17.000-H7SA BN7 17.000 10.70 6 • •
RM-BN7-18.000-H7SA BN7 18.000 10.70 6 • •
RM-BN7-19.000-H7SA BN7 19.000 10.70 6 • •
RM-BN7-20.000-H7SA BN7 20.000 10.70 6 • •
RM-BN8-20.001-H7SA BN8 20.001 12.90 8 • •
RM-BN8-21.000-H7SA BN8 21.000 12.90 8 • •
RM-BN8-22.000-H7SA BN8 22.000 12.90 8 • •
RM-BN8-23.000-H7SA BN8 23.000 12.90 8 •
RM-BN8-24.000-H7SA BN8 24.000 12.90 8 • •
RM-BN8-25.000-H7SA BN8 25.000 12.90 8 • •
RM-BN9-26.000-H7SA BN9 26.000 12.90 8 • •
RM-BN9-27.000-H7SA (1) BN9 27.000 12.90 8 •
RM-BN9-28.000-H7SA (1) BN9 28.000 12.90 8 •
RM-BN9-29.000-H7SA (1) BN9 29.000 12.90 8 •
RM-BN9-30.000-H7SA (1) BN9 30.000 12.90 8 •
RM-BN9-31.000-H7SA (1) BN9 31.000 12.90 8 •
RM-BN9-32.000-H7SA (1) BN9 32.000 12.90 8 •
• For user guide, see pages 316-321
(1) The uncoated fine grain IC08 is available on request
(2) Seat size code
(3) Number of flutes
Complementary Grades (on request):
IC30N cermet tipped, recommended for reaming the following ID5 (PCD) recommended for high speed
materials: non-alloyed (mild) steel,low alloyed steel (<5% of alloying reaming of aluminum (special cases).
elements), free cutting steel, tempered steel (tensile strength RN01 (DLC coating) recommended for reaming the
2
<1100 N/mm ) and nodular iron (GGG40, GGG60, etc.) following materials: aluminum alloys (cast, wrought, etc.),
brass, bronze and other nonferrous materials.
