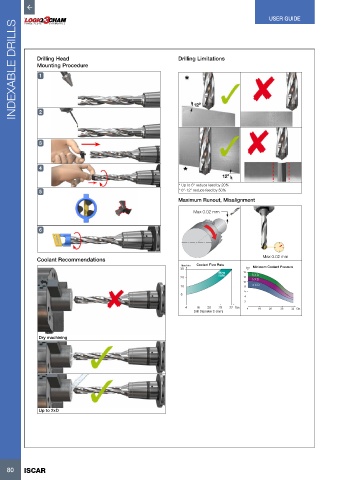

USER GUIDE
      INDEXABLE DRILLS  Drilling Head                           Drilling Limitations








              Mounting Procedure
               1













               3 2



               4


                                                                * Up to 6° reduce feed by 20%
               5                                                * 6°-12° reduce feed by 50%
                                                                Maximum Runout, Misalignment

                                                                     Max 0.02 mm


               6




              Coolant Recommendations                                                        Max 0.02 mm
                                                                 liter/min  Coolant Flow Rate
                                                                 liter/min  Coolant Flow Rate  bar  Minimum Coolant Pressure
                                                                30
                                                                30            flow     15
                                                                             flow          8 X D
                                                                              rate
                                                                20            rate    12
                                                                20                        5 X D
                                                                                      10
                                                                10                     8  3 X D
                                                                10
                                                                                       5
                                                                5
                                                                5                      4
                                                                                       3
                                                                  4   16  20  25  32 Dia.
                                                                  10  16  20  25  32 Dia.  4  16  20  25  32  Dia.
                                                                     Drill Diameter D (mm)
                                                                     Drill Diameter D (mm)
               Dry machining










               Up to 2xD
