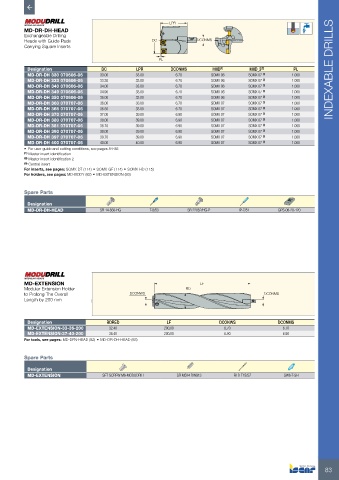

LPR

MD-DR-DH-HEAD
Exchangeable Drilling
Heads with Guide Pads DC DCONMS
Carrying Square Inserts

PL
Designation DC LPR DCONMS MIID (1) MIID_2 (2) PL INDEXABLE DRILLS
MD-DR-DH 330 070606-06 33.00 33.00 6.70 SOMX 06 SOMX 07 (3) 1.000
MD-DR-DH 333 070606-06 33.30 33.00 6.70 SOMX 06 SOMX 07 1.000
(3)
MD-DR-DH 340 070606-06 34.00 33.00 6.70 SOMX 06 SOMX 07 1.000
(3)
MD-DR-DH 349 070606-06 34.90 33.00 6.70 SOMX 06 SOMX 07 1.000
(3)
(3)
MD-DR-DH 350 070606-06 35.00 33.00 6.70 SOMX 06 SOMX 07 1.000
(3)
MD-DR-DH 360 070707-06 36.00 33.00 6.70 SOMX 07 SOMX 07 1.000
MD-DR-DH 365 070707-06 36.50 33.00 6.70 SOMX 07 SOMX 07 1.000
(3)
MD-DR-DH 370 070707-06 37.00 39.00 6.90 SOMX 07 SOMX 07 1.000
(3)
(3)
MD-DR-DH 380 070707-06 38.00 39.00 6.90 SOMX 07 SOMX 07 1.000
(3)
MD-DR-DH 381 070707-06 38.10 39.00 6.90 SOMX 07 SOMX 07 1.000
MD-DR-DH 390 070707-06 39.00 39.00 6.90 SOMX 07 SOMX 07 1.000
(3)
MD-DR-DH 397 070707-06 39.70 39.00 6.90 SOMX 07 SOMX 07 1.000
(3)
MD-DR-DH 400 070707-06 40.00 40.00 6.90 SOMX 07 SOMX 07 1.000
(3)
• For user guide and cutting conditions, see pages 84-85
(1) Master insert identification
(2) Master insert identification 2
(3) Central insert
For inserts, see pages: SOMX-DT (114) • SOMX-GF (114) • SOMX-HD (115)
For holders, see pages: MD-BODY (82) • MD-EXTENSION (83)

Spare Parts
Designation
MD-DR-DH-HEAD SR 14-560-HG T-8/53 SR 22052/HG-P IP-7/51 GPS-06-20-120

MD-EXTENSION LF
Modular Extension Holder BD
to Prolong The Overall DCONWS DCONMS
Length by 200 mm

Designation BDRED LF DCONWS DCONMS
MD-EXTENSION-33-36-200 32.40 200.00 6.70 6.70
MD-EXTENSION-37-40-200 36.40 200.00 6.90 6.90
For tools, see pages: MD-DFN-HEAD (82) • MD-DR-DH-HEAD (83)

Spare Parts
Designation
MD-EXTENSION SET SCREW M6-MODUDRILL SR M5X4 DIN913 BLD T15/S7 SW6-T-SH
