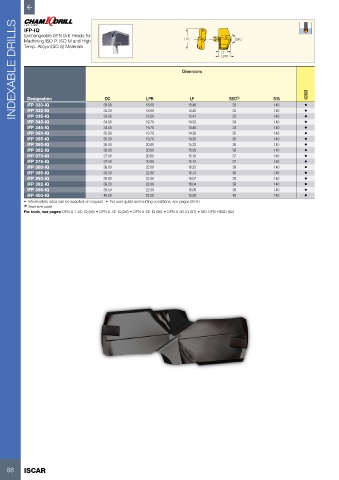

Page 90 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS IFP-IQ Dimensions LF SIG IC908

Exchangeable DFN Drill Heads for
DC
Machining ISO P, ISO M and High
Temp. Alloys (ISO S) Materials

LPR

LF
LPR
DC
Designation
IFP 330-IQ
33
140
•
IFP 332-IQ
140
33.20
33
18.50
13.45
•
140
13.41
33.50
18.50
33
IFP 335-IQ
•
19.70
34.00
140
IFP 340-IQ 33.00 18.50 13.48 SSC (1) SIG •
34
14.53
IFP 345-IQ 34.50 19.70 14.46 34 140 •
IFP 350-IQ 35.00 19.70 14.38 35 140 •
IFP 355-IQ 35.50 19.70 14.30 35 140 •
IFP 360-IQ 36.00 20.80 15.33 36 140 •
IFP 362-IQ 36.20 20.80 15.30 36 140 •
IFP 370-IQ 37.00 20.80 15.18 37 140 •
IFP 375-IQ 37.50 20.80 15.10 37 140 •
IFP 380-IQ 38.00 22.00 16.22 38 140 •
IFP 385-IQ 38.50 22.00 16.15 38 140 •
IFP 390-IQ 39.00 22.00 16.07 39 140 •
IFP 392-IQ 39.20 22.00 16.04 39 140 •
IFP 395-IQ 39.50 22.00 16.00 39 140 •
IFP 400-IQ 40.00 22.00 15.92 40 140 •
• Intermediate sizes can be supplied on request • For user guide and cutting conditions, see pages 89-91
(1) Seat size code
For tools, see pages: DFN A-1.5D-IQ (86) • DFN A-3D-IQ (86) • DFN A-5D-IQ (86) • DFN A-8D-IQ (87) • MD-DFN-HEAD (82)
