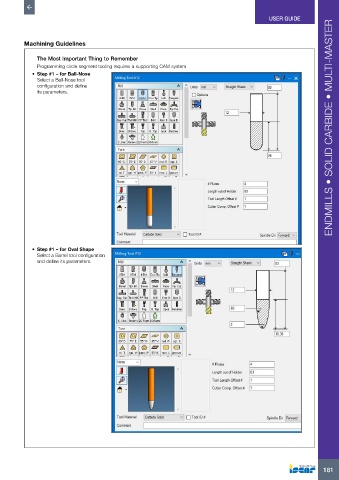

USER GUIDE
Machining Guidelines
The Most Important Thing to Remember
Programming circle segment tooling requires a supporting CAM system
• Step #1 – for Ball-Nose
Select a Ball-Nose tool
configuration and define
its parameters. ENDMILLS • SOLID CARBIDE • MULTI-MASTER
• Step #1 – for Oval Shape
Select a Barrel tool configuration
and define its parameters.
181
