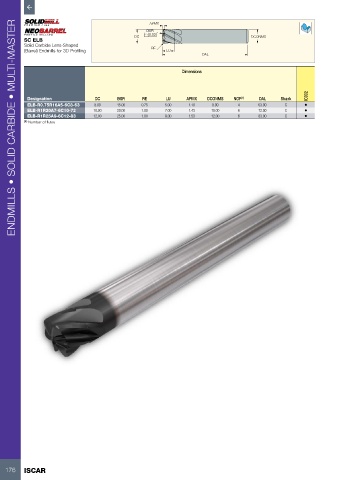

P. 178
APMX
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
BSR
0.02
SC ELB DC DCONMS
Solid Carbide Lens-Shaped
(Barrel) Endmills for 3D Profiling RE LU
OAL
Dimensions
IC902
Designation DC BSR RE LU APMX DCONMS NOF (1) OAL Shank
ELB-R0.75R16A5-6C8-63 8.00 15.00 0.75 5.00 1.10 8.00 4 63.00 C •
ELB-R1R20A7-6C10-72 10.00 20.00 1.00 7.00 1.43 10.00 6 72.00 C •
ELB-R1R25A9-6C12-83 12.00 25.00 1.00 9.00 1.53 12.00 6 83.00 C •
(1) Number of flutes
176 ISCAR
