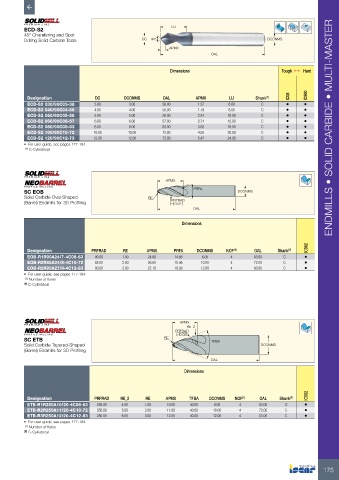

Page 177 - ISCAR(MILLINGCATALOG 38_2021)

ECD-S2 LU
45° Chamfering and Spot
Drilling Solid Carbide Tools DC 90° DCONMS
APMX
OAL

Dimensions Tough 1 Hard

Designation DC DCONMS OAL APMX LU Shank (1) IC08 IC900
ECD-S2 030/90C03-38 3.00 3.00 38.00 1.37 6.00 C • •
ECD-S2 040/90C04-50 4.00 4.00 50.00 1.79 8.00 C • •
ECD-S2 050/90C05-50 5.00 5.00 50.00 2.24 10.00 C • •
ECD-S2 060/90C06-57 6.00 6.00 57.00 2.71 12.00 C • •
ECD-S2 080/90C08-63 8.00 8.00 63.00 3.63 16.00 C • • ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECD-S2 100/90C10-72 10.00 10.00 72.00 4.55 20.00 C • •
ECD-S2 120/90C12-73 12.00 12.00 73.00 5.47 24.00 C • •
• For user guide, see pages 177-184
(1) C-Cylindrical

APMX
SC EOB PRFA DCONMS
Solid Carbide Oval-Shaped RE
(Barrel) Endmills for 3D Profiling PRFRAD
0.02
OAL
Dimensions

IC902
Designation PRFRAD RE APMX PRFA DCONMS NOF (1) OAL Shank (2)
EOB-R1R90A24/7-4C08-63 90.00 1.00 24.80 14.88 8.00 4 63.00 C •
EOB-R2R85A24/8-4C10-72 85.00 2.00 26.60 15.46 10.00 4 72.00 C •
EOB-R2R80A27/9-4C12-83 80.00 2.00 27.10 18.38 12.00 4 83.00 C •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical

APMX
PRFRAD RE_2
0.02
SC ETB RE TFBA
Solid Carbide Tapered-Shaped DCONMS
(Barrel) Endmills for 3D Profiling
OAL

Dimensions

IC902
Designation PRFRAD RE_2 RE APMX TFBA DCONMS NOF (1) OAL Shank (2)
ETB-R1R250A10/20-4C08-63 250.00 4.00 1.00 10.00 40.00 8.00 4 63.00 C •
ETB-R2R250A11/20-4C10-72 250.00 5.00 2.00 11.00 40.00 10.00 4 72.00 C •
ETB-R3R250A12/20-4C12-83 250.00 6.00 3.00 12.00 40.00 12.00 4 83.00 C •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
