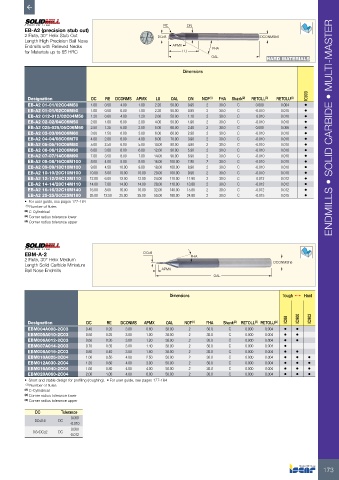

EB-A2 (precision stub cut) RE DN
2 Flute, 30° Helix Stub Cut DCe8 DCONMSh6
Length High Precision Ball Nose
Endmills with Relieved Necks APMX FHA
for Materials up to 65 HRC LU
OAL HARD MATERIALS

Dimensions

IC903
Designation DC RE DCONMS APMX LU OAL DN NOF (1) FHA Shank (2) RETOLL (3) RETOLU (4)
EB-A2 01-01/02C04M50 1.00 0.50 4.00 1.00 2.20 50.00 0.95 2 30.0 C 0.000 0.004 •
EB-A2 01-01/02C06M50 1.00 0.50 6.00 1.00 2.20 50.00 0.95 2 30.0 C -0.010 0.010 •
EB-A2 012-012/02C04M50 1.20 0.60 4.00 1.20 2.60 50.00 1.10 2 30.0 C -0.010 0.010 •
EB-A2 02-02/04C06M50 2.00 1.00 6.00 2.00 4.00 50.00 1.90 2 30.0 C -0.010 0.010 •
EB-A2 025-025/05C06M60 2.50 1.25 6.00 2.50 5.00 60.00 2.40 2 30.0 C 0.000 0.006 • ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EB-A2 03-03/06C06M60 3.00 1.50 6.00 3.00 6.00 60.00 2.90 2 30.0 C -0.010 0.010 •
EB-A2 04-04/08C06M70 4.00 2.00 6.00 4.00 8.00 70.00 3.90 2 30.0 C -0.010 0.010 •
EB-A2 05-05/10C06M80 5.00 2.50 6.00 5.00 10.00 80.00 4.90 2 30.0 C -0.010 0.010 •
EB-A2 06-06/12C06M90 6.00 3.00 6.00 6.00 12.00 90.00 5.90 2 30.0 C -0.010 0.010 •
EB-A2 07-07/14C08M90 7.00 3.50 8.00 7.00 14.00 90.00 6.90 2 30.0 C -0.010 0.010 •
EB-A2 08-08/16C08M100 8.00 4.00 8.00 8.00 16.00 100.00 7.90 2 30.0 C -0.010 0.010 •
EB-A2 09-09/18C10M100 9.00 4.50 10.00 9.00 18.00 100.00 8.90 2 30.0 C -0.010 0.010 •
EB-A2 10-10/20C10M100 10.00 5.00 10.00 10.00 20.00 100.00 9.90 2 30.0 C -0.010 0.010 •
EB-A2 12-12/24C12M110 12.00 6.00 12.00 12.00 24.00 110.00 11.90 2 30.0 C -0.012 0.012 •
EB-A2 14-14/28C14M110 14.00 7.00 14.00 14.00 28.00 110.00 13.80 2 30.0 C -0.012 0.012 •
EB-A2 16-16/32C16M140 16.00 8.00 16.00 16.00 32.00 140.00 15.80 2 30.0 C -0.012 0.012 •
EB-A2 25-25/50C25M180 25.00 12.50 25.00 25.00 50.00 180.00 24.80 2 30.0 C -0.015 0.015 •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance lower
(4) Corner radius tolerance upper

EBM-A-2 DCe8 FHA
2 Flute, 30° Helix Medium DCONMSh6
Length Solid Carbide Miniature
Ball Nose Endmills APMX
OAL

Dimensions Tough 1 Hard

IC08 IC900 IC902
Designation DC RE DCONMS APMX OAL NOF (1) FHA Shank (2) RETOLL (3) RETOLU (4)
EBM004A008-2C03 0.40 0.20 3.00 0.80 38.00 2 30.0 C 0.000 0.004 • •
EBM005A010-2C03 0.50 0.25 3.00 1.00 38.00 2 30.0 C 0.000 0.004 • •
EBM006A012-2C03 0.60 0.30 3.00 1.20 38.00 2 30.0 C 0.000 0.004 • •
EBM007A014-2C03 0.70 0.35 3.00 1.40 38.00 2 30.0 C 0.000 0.004 •
EBM008A016-2C03 0.80 0.40 3.00 1.60 38.00 2 30.0 C 0.000 0.004 • •
EBM010A025-2C04 1.00 0.50 4.00 2.50 50.00 2 30.0 C 0.000 0.004 • • •
EBM012A030-2C04 1.20 0.60 4.00 3.00 50.00 2 30.0 C 0.000 0.004 • • •
EBM016A040-2C04 1.60 0.80 4.00 4.00 50.00 2 30.0 C 0.000 0.004 • • •
EBM020A060-2C04 2.00 1.00 4.00 6.00 50.00 2 30.0 C 0.000 0.004 • • •
• Short and stable design for profiling (roughing). • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance lower
(4) Corner radius tolerance upper

DC Tolerance
0.000
DC≤0.6 DC
-0.010
0.000
0.6<DC≤2 DC
-0.012
