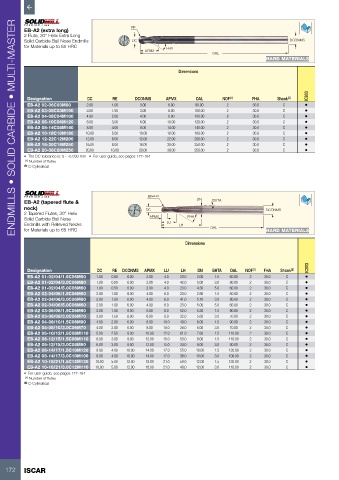

Page 174 - ISCAR(MILLINGCATALOG 38_2021)

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EB-A2 (extra long) RE
2 Flute, 30° Helix Extra Long
Solid Carbide Ball Nose Endmills DC DCONMS
for Materials up to 65 HRC FHA
APMX
OAL
HARD MATERIALS

Dimensions

IC903
Designation DC RE DCONMS APMX OAL NOF (1) FHA Shank (2)
EB-A2 02-06C03M80 2.00 1.00 3.00 6.00 80.00 2 30.0 C •
EB-A2 03-08C03M100 3.00 1.50 3.00 8.00 100.00 2 30.0 C •
EB-A2 04-08C04M100 4.00 2.00 4.00 8.00 100.00 2 30.0 C •
EB-A2 06-10C06M120 6.00 3.00 6.00 10.00 120.00 2 30.0 C •
EB-A2 08-14C08M140 8.00 4.00 8.00 14.00 140.00 2 30.0 C •
EB-A2 10-18C10M180 10.00 5.00 10.00 18.00 180.00 2 30.0 C •
EB-A2 12-22C12M200 12.00 6.00 12.00 22.00 200.00 2 30.0 C •
EB-A2 16-30C16M250 16.00 8.00 16.00 30.00 250.00 2 30.0 C •
EB-A2 20-38C20M250 20.00 10.00 20.00 38.00 250.00 2 30.0 C •
• The DC tolerance is: 0 - -0.030 mm • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical

RE ±0.01

EB-A2 (tapered flute & DN BHTA
neck) DC DCONMS
2 Tapered Flutes, 30° Helix
Solid Carbide Ball Nose APMX FHA
Endmills with Relieved Necks LU LH
for Materials up to 65 HRC OAL HARD MATERIALS

Dimensions

IC903
Designation DC RE DCONMS APMX LU LH DN BHTA OAL NOF (1) FHA Shank (2)
EB-A2 01-02/04/1.5C06M60 1.00 0.50 6.00 2.00 4.0 23.0 2.00 1.5 60.00 2 30.0 C •
EB-A2 01-02/04/3.0C06M80 1.00 0.50 6.00 2.00 4.0 42.0 5.00 3.0 80.00 2 30.0 C •
EB-A2 01-02/04/5.0C06M60 1.00 0.50 6.00 2.00 4.0 23.0 4.30 5.0 60.00 2 30.0 C •
EB-A2 02-04/06/1.5C06M60 2.00 1.00 6.00 4.00 6.0 23.0 2.90 1.5 60.00 2 30.0 C •
EB-A2 02-04/06/3.0C06M80 2.00 1.00 6.00 4.00 6.0 41.0 5.70 3.0 80.00 2 30.0 C •
EB-A2 02-04/06/5.0C06M60 2.00 1.00 6.00 4.00 6.0 23.0 5.00 5.0 60.00 2 30.0 C •
EB-A2 03-06/08/1.5C06M90 3.00 1.50 6.00 6.00 8.0 52.0 5.30 1.5 90.00 2 30.0 C •
EB-A2 03-06/08/3.0C06M70 3.00 1.50 6.00 6.00 8.0 32.0 5.60 3.0 70.00 2 30.0 C •
EB-A2 04-08/10/1.5C06M90 4.00 2.00 6.00 8.00 10.0 49.0 6.00 1.5 90.00 2 30.0 C •
EB-A2 04-08/10/3.0C06M70 4.00 2.00 6.00 8.00 10.0 28.0 6.00 3.0 70.00 2 30.0 C •
EB-A2 05-10/12/1.5C08M110 5.00 2.50 8.00 10.00 12.0 61.0 7.60 1.5 110.00 2 30.0 C •
EB-A2 06-12/15/1.5C08M110 6.00 3.00 8.00 12.00 15.0 53.0 8.00 1.5 110.00 2 30.0 C •
EB-A2 06-12/15/3.0C08M90 6.00 3.00 8.00 12.00 15.0 34.0 8.00 3.0 90.00 2 30.0 C •
EB-A2 08-14/17/1.5C10M120 8.00 4.00 10.00 14.00 17.0 55.0 10.00 1.5 120.00 2 30.0 C •
EB-A2 08-14/17/3.0C10M100 8.00 4.00 10.00 14.00 17.0 36.0 10.00 3.0 100.00 2 30.0 C •
EB-A2 10-18/21/1.5C12M130 10.00 5.00 12.00 18.00 21.0 59.0 12.00 1.5 130.00 2 30.0 C •
EB-A2 10-18/21/3.0C12M110 10.00 5.00 12.00 18.00 21.0 40.0 12.00 3.0 110.00 2 30.0 C •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
