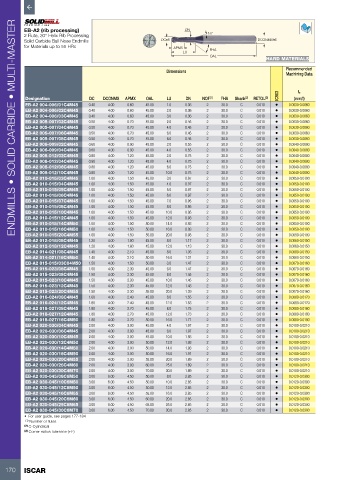

Page 172 - ISCAR(MILLINGCATALOG 38_2021)

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EB-A2 (rib processing) DN
2 Flute, 30° Helix Rib Processing 15°
Solid Carbide Ball Nose Endmills DCe8 DCONMSh6
for Materials up to 55 HRc APMX
LU FHA
OAL
HARD MATERIALS
Recommended
Dimensions
Machining Data

IC903 fz
Designation DC DCONMS APMX OAL LU DN NOF (1) FHA Shank (2) RETOL (3) (mm/t)
EB-A2 004-006/01C4M45 0.40 4.00 0.60 45.00 1.0 0.36 2 30.0 C 0.010 • 0.0030-0.0060
EB-A2 004-006/02C4M45 0.40 4.00 0.60 45.00 2.0 0.36 2 30.0 C 0.010 • 0.0030-0.0060
EB-A2 004-006/03C4M45 0.40 4.00 0.60 45.00 3.0 0.36 2 30.0 C 0.010 • 0.0030-0.0060
EB-A2 005-007/02C4M45 0.50 4.00 0.70 45.00 2.0 0.45 2 30.0 C 0.010 • 0.0030-0.0060
EB-A2 005-007/04C4M45 0.50 4.00 0.70 45.00 4.0 0.45 2 30.0 C 0.010 • 0.0030-0.0060
EB-A2 005-007/06C4M45 0.50 4.00 0.70 45.00 6.0 0.45 2 30.0 C 0.010 • 0.0030-0.0060
EB-A2 005-007/08C4M45 0.50 4.00 0.70 45.00 8.0 0.45 2 30.0 C 0.010 • 0.0030-0.0060
EB-A2 006-009/02C4M45 0.60 4.00 0.90 45.00 2.0 0.55 2 30.0 C 0.010 • 0.0040-0.0080
EB-A2 006-009/04C4M45 0.60 4.00 0.90 45.00 4.0 0.55 2 30.0 C 0.010 • 0.0040-0.0080
EB-A2 008-012/02C4M45 0.80 4.00 1.20 45.00 2.0 0.75 2 30.0 C 0.010 • 0.0040-0.0080
EB-A2 008-012/04C4M45 0.80 4.00 1.20 45.00 4.0 0.75 2 30.0 C 0.010 • 0.0040-0.0080
EB-A2 008-012/06C4M45 0.80 4.00 1.20 45.00 6.0 0.75 2 30.0 C 0.010 • 0.0040-0.0080
EB-A2 008-012/10C4M45 0.80 4.00 1.20 45.00 10.0 0.75 2 30.0 C 0.010 • 0.0040-0.0080
EB-A2 010-015/03C4M45 1.00 4.00 1.50 45.00 3.0 0.97 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/04C4M45 1.00 4.00 1.50 45.00 4.0 0.97 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/05C4M45 1.00 4.00 1.50 45.00 5.0 0.97 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/06C4M45 1.00 4.00 1.50 45.00 6.0 0.97 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/07C4M45 1.00 4.00 1.50 45.00 7.0 0.95 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/08C4M45 1.00 4.00 1.50 45.00 8.0 0.95 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/10C4M45 1.00 4.00 1.50 45.00 10.0 0.95 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/12C4M45 1.00 4.00 1.50 45.00 12.0 0.93 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/14C4M50 1.00 4.00 1.50 50.00 14.0 0.93 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/16C4M50 1.00 4.00 1.50 50.00 16.0 0.93 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 010-015/20C4M55 1.00 4.00 1.50 55.00 20.0 0.93 2 30.0 C 0.010 • 0.0050-0.0100
EB-A2 012-018/08C4M45 1.20 4.00 1.80 45.00 8.0 1.17 2 30.0 C 0.010 • 0.0060-0.0150
EB-A2 012-018/12C4M45 1.20 4.00 1.80 45.00 12.0 1.13 2 30.0 C 0.010 • 0.0060-0.0150
EB-A2 014-021/08C4M45 1.40 4.00 2.10 45.00 8.0 1.35 2 30.0 C 0.010 • 0.0060-0.0150
EB-A2 014-021/16C4M50 1.40 4.00 2.10 50.00 16.0 1.31 2 30.0 C 0.010 • 0.0060-0.0150
EB-A2 015-015/03C04M50 1.50 4.00 1.50 50.00 3.0 1.47 2 30.0 C 0.010 • 0.0070-0.0160
EB-A2 015-023/06C4M45 1.50 4.00 2.30 45.00 6.0 1.47 2 30.0 C 0.010 • 0.0070-0.0160
EB-A2 015-023/08C4M45 1.50 4.00 2.30 45.00 8.0 1.45 2 30.0 C 0.010 • 0.0070-0.0160
EB-A2 015-023/10C4M45 1.50 4.00 2.30 45.00 10.0 1.45 2 30.0 C 0.010 • 0.0070-0.0160
EB-A2 015-023/12C4M45 1.50 4.00 2.30 45.00 12.0 1.43 2 30.0 C 0.010 • 0.0070-0.0160
EB-A2 015-023/20C4M55 1.50 4.00 2.30 55.00 20.0 1.39 2 30.0 C 0.010 • 0.0070-0.0160
EB-A2 016-024/08C4M45 1.60 4.00 2.40 45.00 8.0 1.55 2 30.0 C 0.010 • 0.0080-0.0170
EB-A2 016-024/12C4M45 1.60 4.00 2.40 45.00 12.0 1.53 2 30.0 C 0.010 • 0.0080-0.0170
EB-A2 018-027/08C4M45 1.80 4.00 2.70 45.00 8.0 1.75 2 30.0 C 0.010 • 0.0080-0.0180
EB-A2 018-027/12C4M45 1.80 4.00 2.70 45.00 12.0 1.73 2 30.0 C 0.010 • 0.0080-0.0180
EB-A2 018-027/16C4M50 1.80 4.00 2.70 50.00 16.0 1.71 2 30.0 C 0.010 • 0.0080-0.0180
EB-A2 020-030/04C4M45 2.00 4.00 3.00 45.00 4.0 1.97 2 30.0 C 0.010 • 0.0100-0.0210
EB-A2 020-030/06C4M45 2.00 4.00 3.00 45.00 6.0 1.97 2 30.0 C 0.010 • 0.0100-0.0210
EB-A2 020-030/10C4M45 2.00 4.00 3.00 45.00 10.0 1.93 2 30.0 C 0.010 • 0.0100-0.0210
EB-A2 020-030/12C4M50 2.00 4.00 3.00 50.00 12.0 1.93 2 30.0 C 0.010 • 0.0100-0.0210
EB-A2 020-030/14C4M50 2.00 4.00 3.00 50.00 14.0 1.93 2 30.0 C 0.010 • 0.0100-0.0210
EB-A2 020-030/16C4M50 2.00 4.00 3.00 50.00 16.0 1.91 2 30.0 C 0.010 • 0.0100-0.0210
EB-A2 020-030/20C4M55 2.00 4.00 3.00 55.00 20.0 1.89 2 30.0 C 0.010 • 0.0100-0.0210
EB-A2 020-030/25C4M60 2.00 4.00 3.00 60.00 25.0 1.89 2 30.0 C 0.010 • 0.0100-0.0210
EB-A2 020-030/30C4M70 2.00 4.00 3.00 70.00 30.0 1.89 2 30.0 C 0.010 • 0.0100-0.0210
EB-A2 030-045/08C6M50 3.00 6.00 4.50 50.00 8.0 2.85 2 30.0 C 0.010 • 0.0120-0.0300
EB-A2 030-045/10C6M50 3.00 6.00 4.50 50.00 10.0 2.85 2 30.0 C 0.010 • 0.0120-0.0300
EB-A2 030-045/12C6M50 3.00 6.00 4.50 50.00 12.0 2.85 2 30.0 C 0.010 • 0.0120-0.0300
EB-A2 030-045/16C6M55 3.00 6.00 4.50 55.00 16.0 2.85 2 30.0 C 0.010 • 0.0120-0.0300
EB-A2 030-045/20C6M60 3.00 6.00 4.50 60.00 20.0 2.85 2 30.0 C 0.010 • 0.0120-0.0300
EB-A2 030-045/25C6M65 3.00 6.00 4.50 65.00 25.0 2.85 2 30.0 C 0.010 • 0.0120-0.0300
EB-A2 030-045/30C6M70 3.00 6.00 4.50 70.00 30.0 2.85 2 30.0 C 0.010 • 0.0120-0.0300
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
