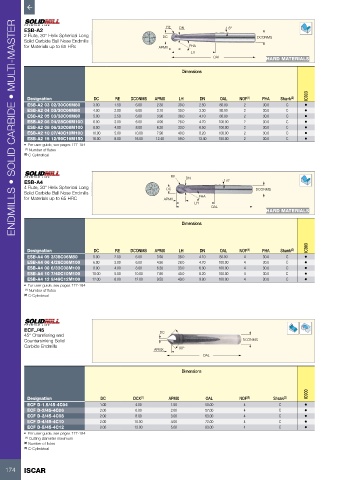

Page 176 - ISCAR(MILLINGCATALOG 38_2021)

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ESB-A2 RE DN 1.6°
2 Flute, 30° Helix Spherical Long DC DCONMS
Solid Carbide Ball Nose Endmills
for Materials up to 65 HRc APMX FHA
LH
OAL HARD MATERIALS

Dimensions

IC903
Designation DC RE DCONMS APMX LH DN OAL NOF (1) FHA Shank (2)
ESB-A2 03 02/30C06M80 3.00 1.50 6.00 2.30 30.0 2.50 80.00 2 30.0 C •
ESB-A2 04 03/30C06M80 4.00 2.00 6.00 3.10 30.0 3.30 80.00 2 30.0 C •
ESB-A2 05 03/38C06M80 5.00 2.50 6.00 3.90 38.0 4.10 80.00 2 30.0 C •
ESB-A2 06 04/28C06M100 6.00 3.00 6.00 4.90 28.0 4.70 100.00 2 30.0 C •
ESB-A2 08 06/33C08M100 8.00 4.00 8.00 6.30 33.0 6.50 100.00 2 30.0 C •
ESB-A2 10 07/40C10M100 10.00 5.00 10.00 7.90 40.0 8.20 100.00 2 30.0 C •
ESB-A2 16 12/59C16M150 16.00 8.00 16.00 12.40 59.0 13.40 150.00 2 30.0 C •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical

RE
ESB-A4 DN 1.6°
4 Flute, 30° Helix Spherical Long DC DCONMS
Solid Carbide Ball Nose Endmills
for Materials up to 65 HRC APMX FHA
LH
OAL
HARD MATERIALS
Dimensions

IC903
Designation DC RE DCONMS APMX LH DN OAL NOF (1) FHA Shank (2)
ESB-A4 05 3/38C06M80 5.00 2.50 6.00 3.90 38.0 4.10 80.00 4 30.0 C •
ESB-A4 06 4/28C06M100 6.00 3.00 6.00 4.90 28.0 4.70 100.00 4 30.0 C •
ESB-A4 08 6/33C08M100 8.00 4.00 8.00 6.30 33.0 6.30 100.00 4 30.0 C •
ESB-A4 10 7/40C10M100 10.00 5.00 10.00 7.90 40.0 8.20 100.00 4 30.0 C •
ESB-A4 12 9/49C12M100 12.00 6.00 12.00 9.50 49.0 9.80 100.00 4 30.0 C •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical

ECF../45 DC
45° Chamfering and
Countersinking Solid DCONMS
Carbide Endmills 90°
APMX
OAL

Dimensions

IC900
Designation DC DCX (1) APMX OAL NOF (2) Shank (3)
ECF D-1.5/45-4C04 1.00 4.00 1.50 50.00 4 C •
ECF D-2/45-4C06 2.00 6.00 2.00 57.00 4 C •
ECF D-3/45-4C08 2.00 8.00 3.00 63.00 4 C •
ECF D-4/45-4C10 2.00 10.00 4.00 72.00 4 C •
ECF D-5/45-4C12 2.00 12.00 5.00 83.00 4 C •
• For user guide, see pages 177-184
(1) Cutting diameter maximum
(2) Number of flutes
(3) C-Cylindrical

174 ISCAR
