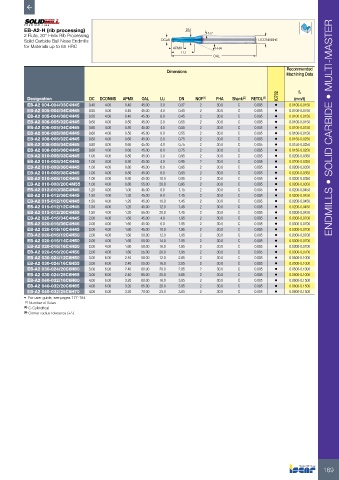

Page 171 - ISCAR(MILLINGCATALOG 38_2021)

EB-A2-H (rib processing) DN
2 Flute, 30° Helix Rib Processing 15°
Solid Carbide Ball Nose Endmills DCe8 DCONMSh6
for Materials up to 65 HRC APMX FHA
LU
OAL

Dimensions Recommended
Machining Data

IC702 fz
Designation DC DCONMS APMX OAL LU DN NOF (1) FHA Shank (2) RETOL (3) (mm/t)
EB-A2 004-004/03C4H45 0.40 4.00 0.40 45.00 3.0 0.37 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 005-004/04C4H45 0.50 4.00 0.40 45.00 4.0 0.45 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 005-004/08C4H45 0.50 4.00 0.40 45.00 8.0 0.45 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 006-005/02C4H45 0.60 4.00 0.50 45.00 2.0 0.55 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 006-005/04C4H45 0.60 4.00 0.50 45.00 4.0 0.55 2 30.0 C 0.005 • 0.0100-0.0150 ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EB-A2 006-005/08C4H45 0.60 4.00 0.50 45.00 8.0 0.55 2 30.0 C 0.005 • 0.0100-0.0150
EB-A2 008-006/02C4H45 0.80 4.00 0.60 45.00 2.0 0.75 2 30.0 C 0.005 • 0.0150-0.0250
EB-A2 008-006/04C4H45 0.80 4.00 0.60 45.00 4.0 0.75 2 30.0 C 0.005 • 0.0150-0.0250
EB-A2 008-006/06C4H45 0.80 4.00 0.60 45.00 6.0 0.75 2 30.0 C 0.005 • 0.0150-0.0250
EB-A2 010-008/03C4H45 1.00 4.00 0.80 45.00 3.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/04C4H45 1.00 4.00 0.80 45.00 4.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/06C4H45 1.00 4.00 0.80 45.00 6.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/08C4H45 1.00 4.00 0.80 45.00 8.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/10C4H45 1.00 4.00 0.80 45.00 10.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 010-008/20C4M55 1.00 4.00 0.80 55.00 20.0 0.95 2 30.0 C 0.005 • 0.0200-0.0350
EB-A2 012-010/08C4H45 1.20 4.00 1.00 45.00 8.0 1.15 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 015-012/06C4H45 1.50 4.00 1.20 45.00 6.0 1.45 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 015-012/10C4H45 1.50 4.00 1.20 45.00 10.0 1.45 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 015-012/12C4H45 1.50 4.00 1.20 45.00 12.0 1.45 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 015-012/20C4H55 1.50 4.00 1.20 55.00 20.0 1.45 2 30.0 C 0.005 • 0.0200-0.0450
EB-A2 020-016/04C4H45 2.00 4.00 1.60 45.00 4.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/06C4H45 2.00 4.00 1.60 45.00 6.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/10C4H45 2.00 4.00 1.60 45.00 10.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/12C4H50 2.00 4.00 1.60 50.00 12.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/14C4H50 2.00 4.00 1.60 50.00 14.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/16C4H50 2.00 4.00 1.60 50.00 16.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 020-016/20C4H55 2.00 4.00 1.60 55.00 20.0 1.95 2 30.0 C 0.005 • 0.0300-0.0700
EB-A2 030-024/12C6H50 3.00 6.00 2.40 50.00 12.0 2.85 2 30.0 C 0.005 • 0.0500-0.1000
EB-A2 030-024/16C6H55 3.00 6.00 2.40 55.00 16.0 2.85 2 30.0 C 0.005 • 0.0500-0.1000
EB-A2 030-024/20C6H60 3.00 6.00 2.40 60.00 20.0 2.85 2 30.0 C 0.005 • 0.0500-0.1000
EB-A2 030-024/25C6H65 3.00 6.00 2.40 65.00 25.0 2.85 2 30.0 C 0.005 • 0.0500-0.1000
EB-A2 040-032/16C6H60 4.00 6.00 3.20 60.00 16.0 3.85 2 30.0 C 0.005 • 0.0600-0.1500
EB-A2 040-032/20C6H65 4.00 6.00 3.20 65.00 20.0 3.85 2 30.0 C 0.005 • 0.0600-0.1500
EB-A2 040-032/25C6H70 4.00 6.00 3.20 70.00 25.0 3.85 2 30.0 C 0.005 • 0.0600-0.1500
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
(3) Corner radius tolerance (+/-)
