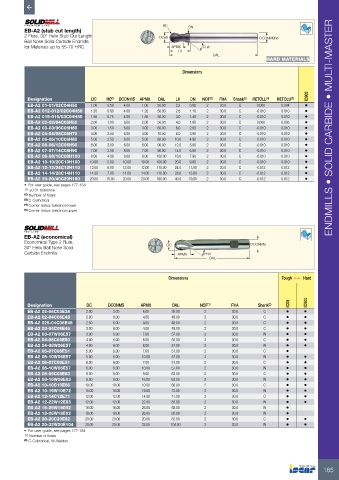

Page 167 - ISCAR(MILLINGCATALOG 38_2021)

RE
EB-A2 (stub cut length) DN
2 Flute, 30° Helix Stub Cut Length DCe8 DCONMSh6
Ball Nose Solid Carbide Endmills
for Materials up to 55-70 HRC APMX FHA
LH
OAL
HARD MATERIALS
Dimensions

IC903
Designation DC RE (1) DCONMS APMX OAL LH DN NOF (2) FHA Shank (3) RETOLL (4) RETOLU (5)
EB-A2 01-01/02C04H50 1.00 0.50 4.00 1.00 50.00 2.2 0.95 2 30.0 C 0.000 0.004 •
EB-A2 012-012/02C04H50 1.20 0.60 4.00 1.20 50.00 2.6 1.10 2 30.0 C -0.010 0.010 •
EB-A2 015-015/03C04H50 1.50 0.75 4.00 1.50 50.00 3.0 1.40 2 30.0 C -0.010 0.010 •
EB-A2 02-02/04C06H50 2.00 1.00 6.00 2.00 50.00 4.0 1.90 2 30.0 C 0.000 0.005 •
EB-A2 03-03/06C06H60 3.00 1.50 6.00 3.00 60.00 6.0 2.90 2 30.0 C -0.010 0.010 • ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EB-A2 04-04/08C06H70 4.00 2.00 6.00 4.00 70.00 8.0 3.90 2 30.0 C -0.010 0.010 •
EB-A2 05-05/10C06H80 5.00 2.50 6.00 5.00 80.00 10.0 4.90 2 30.0 C -0.010 0.010 •
EB-A2 06-06/12C06H90 6.00 3.00 6.00 6.00 90.00 12.0 5.90 2 30.0 C -0.010 0.010 •
EB-A2 07-07/14C08H90 7.00 3.50 8.00 7.00 90.00 14.0 6.90 2 30.0 C -0.010 0.010 •
EB-A2 08-08/16C08H100 8.00 4.00 8.00 8.00 100.00 16.0 7.90 2 30.0 C -0.010 0.010 •
EB-A2 10-10/20C10H100 10.00 5.00 10.00 10.00 100.00 20.0 9.90 2 30.0 C -0.010 0.010 •
EB-A2 12-12/24C12H110 12.00 6.00 12.00 12.00 110.00 24.0 11.90 2 30.0 C -0.012 0.012 •
EB-A2 14-14/28C14H110 14.00 7.00 14.00 14.00 110.00 28.0 13.80 2 30.0 C -0.012 0.012 •
EB-A2 20-20/40C20H160 20.00 10.00 20.00 20.00 160.00 40.0 19.80 2 30.0 C -0.012 0.012 •
• For user guide, see pages 177-184
(1) ±0.01 tolerance
(2) Number of flutes
(3) C-Cylindrical
(4) Corner radius tolerance lower
(5) Corner radius tolerance upper

EB-A2 (economical)
Economical Type 2 Flute, DCONMS
30° Helix Ball Nose Solid DC
Carbide Endmills APMX FHA
OAL

Dimensions Tough 1 Hard

Designation DC DCONMS APMX OAL NOF (1) FHA Shank (2) IC08 IC900
EB-A2 02-06C03E38 2.00 3.00 6.00 38.00 2 30.0 C • •
EB-A2 02-04C06E48 2.00 6.00 4.00 48.00 2 30.0 C • •
EB-A2 025-04C06E48 2.50 6.00 4.00 48.00 2 30.0 C • •
EB-A2 03-04C06E48 3.00 6.00 4.00 48.00 2 30.0 C • •
EB-A2 03-07W06E57 3.00 6.00 7.00 57.00 2 30.0 W • •
EB-A2 04-06C06E50 4.00 6.00 6.00 50.00 2 30.0 C • •
EB-A2 04-08W06E57 4.00 6.00 8.00 57.00 2 30.0 W • •
EB-A2 05-07C06E51 5.00 6.00 7.00 51.00 2 30.0 C •
EB-A2 05-10W06E57 5.00 6.00 10.00 57.00 2 30.0 W • •
EB-A2 06-07C06E51 6.00 6.00 7.00 51.00 2 30.0 C • •
EB-A2 06-10W06E57 6.00 6.00 10.00 57.00 2 30.0 W • •
EB-A2 08-09C08E63 8.00 8.00 9.00 63.00 2 30.0 C • •
EB-A2 08-16W08E63 8.00 8.00 16.00 63.00 2 30.0 W • •
EB-A2 10-10C10E66 10.00 10.00 10.00 66.00 2 30.0 C • •
EB-A2 10-19W10E72 10.00 10.00 19.00 72.00 2 30.0 W • •
EB-A2 12-14C12E71 12.00 12.00 14.00 71.00 2 30.0 C • •
EB-A2 12-22W12E83 12.00 12.00 22.00 83.00 2 30.0 W • •
EB-A2 16-26W16E92 16.00 16.00 26.00 92.00 2 30.0 W •
EB-A2 18-26W18E92 18.00 18.00 26.00 92.00 2 30.0 W •
EB-A2 20-20C20E82 20.00 20.00 20.00 82.00 2 30.0 C • •
EB-A2 20-32W20E104 20.00 20.00 32.00 104.00 2 30.0 W • •
• For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical, W-Weldon

165
