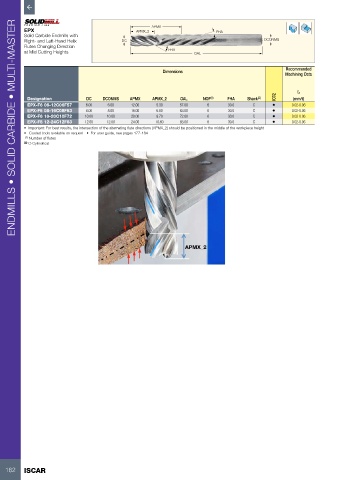

Page 164 - ISCAR(MILLINGCATALOG 38_2021)

ENDMILLS • SOLID CARBIDE • MULTI-MASTER
EPX APMX_2 APMX FHA
Solid Carbide Endmills with
Right- and Left-Hand Helix DC DCONMS
Flutes Changing Direction
at Mid Cutting Heights FHA OAL

Dimensions Recommended
Machining Data

fz
Designation DC DCONMS APMX APMX_2 OAL NOF (1) FHA Shank (2) IC02 (mm/t)
EPX-F6 06-12C06F57 6.00 6.00 12.00 5.30 57.00 6 30.0 C • 0.02-0.06
EPX-F6 08-16C08F63 8.00 8.00 16.00 6.60 63.00 6 30.0 C • 0.02-0.06
EPX-F6 10-20C10F72 10.00 10.00 20.00 8.70 72.00 6 30.0 C • 0.02-0.06
EPX-F8 12-24C12F83 12.00 12.00 24.00 10.60 83.00 8 30.0 C • 0.02-0.06
• Important: For best results, the intersection of the alternating flute directions (APMX_2) should be positioned in the middle of the workpiece height
• Coated tools available on request • For user guide, see pages 177-184
(1) Number of flutes
(2) C-Cylindrical
