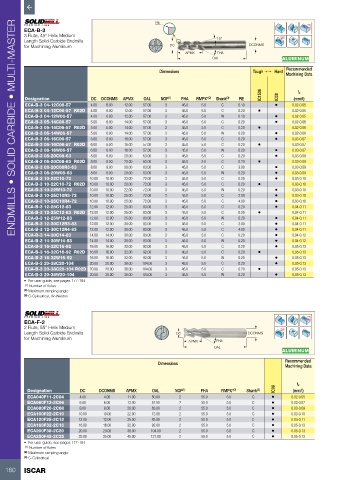

Page 162 - ISCAR(MILLINGCATALOG 38_2021)

RE Rd°
ENDMILLS • SOLID CARBIDE • MULTI-MASTER
ECA-B-3
3 Flute, 45° Helix Medium
Length Solid Carbide Endmills 15°
for Machining Aluminum DC DCONMS
APMX FHA
OAL ALUMINUM

Dimensions Tough 1 Hard Recommended
Machining Data

IC1508 fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) RE IC08 (mm/t)
ECA-B-3 04-12C06-57 4.00 6.00 12.00 57.00 3 45.0 5.0 C 0.10 • 0.02-0.05
ECA-B-3 04-12C06-57 R02D 4.00 6.00 12.00 57.00 3 45.0 5.0 C 0.20 • 0.02-0.05
ECA-B-3 04-12W06-57 4.00 6.00 12.00 57.00 3 45.0 5.0 W 0.10 • 0.02-0.05
ECA-B-3 05-14C06-57 5.00 6.00 14.00 57.00 3 45.0 5.0 C 0.20 • 0.02-0.06
ECA-B-3 05-14C06-57 R02D 5.00 6.00 14.00 57.00 3 45.0 5.0 C 0.20 • 0.02-0.06
ECA-B-3 05-14W06-57 5.00 6.00 14.00 57.00 3 45.0 5.0 W 0.20 • 0.02-0.06
ECA-B-3 06-16C06-57 6.00 6.00 16.00 57.00 3 45.0 5.0 C 0.20 • 0.03-0.07
ECA-B-3 06-16C06-57 R02D 6.00 6.00 16.00 57.00 3 45.0 5.0 C 0.20 • 0.03-0.07
ECA-B-3 06-16W06-57 6.00 6.00 16.00 57.00 3 45.0 5.0 W 0.20 • 0.03-0.07
ECA-B-3 08-20C08-63 8.00 8.00 20.00 63.00 3 45.0 5.0 C 0.20 • 0.03-0.09
ECA-B-3 08-20C08-63 R02D 8.00 8.00 20.00 63.00 3 45.0 5.0 C 0.20 • 0.03-0.09
ECA-B-3 08-20C08R3-63 8.00 8.00 20.00 63.00 3 45.0 5.0 C 3.00 • 0.03-0.09
ECA-B-3 08-20W08-63 8.00 8.00 20.00 63.00 3 45.0 5.0 W 0.20 • 0.03-0.09
ECA-B-3 10-22C10-72 10.00 10.00 22.00 72.00 3 45.0 5.0 C 0.20 • 0.03-0.10
ECA-B-3 10-22C10-72 R02D 10.00 10.00 22.00 72.00 3 45.0 5.0 C 0.20 • 0.03-0.10
ECA-B-3 10-22W10-72 10.00 10.00 22.00 72.00 3 45.0 5.0 W 0.20 • 0.03-0.10
ECA-B-3 10-25C10R3-72 10.00 10.00 25.00 72.00 3 45.0 5.0 C 3.00 • 0.03-0.10
ECA-B-3 10-25C10R4-72 10.00 10.00 25.00 72.00 3 45.0 5.0 C 4.00 • 0.03-0.10
ECA-B-3 12-25C12-83 12.00 12.00 25.00 83.00 3 45.0 5.0 C 0.20 • 0.04-0.11
ECA-B-3 12-25C12-83 R02D 12.00 12.00 25.00 83.00 3 45.0 5.0 C 0.20 • 0.04-0.11
ECA-B-3 12-25W12-83 12.00 12.00 25.00 83.00 3 45.0 5.0 W 0.20 • 0.04-0.11
ECA-B-3 12-30C12R3-83 12.00 12.00 30.00 83.00 3 45.0 5.0 C 3.00 • 0.04-0.11
ECA-B-3 12-30C12R4-83 12.00 12.00 30.00 83.00 3 45.0 5.0 C 4.00 • 0.04-0.11
ECA-B-3 14-30C14-83 14.00 14.00 30.00 83.00 3 45.0 5.0 C 0.20 • 0.04-0.12
ECA-B-3 14-30W14-83 14.00 14.00 30.00 83.00 3 45.0 5.0 W 0.20 • 0.04-0.12
ECA-B-3 16-32C16-92 16.00 16.00 32.00 92.00 3 45.0 5.0 C 0.20 • 0.05-0.13
ECA-B-3 16-32C16-92 R02D 16.00 16.00 32.00 92.00 3 45.0 5.0 C 0.20 • 0.05-0.13
ECA-B-3 16-32W16-92 16.00 16.00 32.00 92.00 3 45.0 5.0 W 0.20 • 0.05-0.13
ECA-B-3 20-38C20-104 20.00 20.00 38.00 104.00 3 45.0 5.0 C 0.20 • 0.05-0.13
ECA-B-3 20-38C20-104 R02D 20.00 20.00 38.00 104.00 3 45.0 5.0 C 0.20 • 0.05-0.13
ECA-B-3 20-38W20-104 20.00 20.00 38.00 104.00 3 45.0 5.0 W 0.20 • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical, W-Weldon

Rd°
ECA-F-2
2 Flute, 55° Helix Medium
Length Solid Carbide Endmills DC DCONMS
for Machining Aluminum
APMX FHA
OAL
ALUMINUM
Dimensions Recommended
Machining Data

fz
Designation DC DCONMS APMX OAL NOF (1) FHA RMPX° (2) Shank (3) IC08 (mm/t)
ECA040F11-2C04 4.00 4.00 11.00 50.00 2 55.0 5.0 C • 0.02-0.05
ECA060F13-2C06 6.00 6.00 13.00 57.00 2 55.0 5.0 C • 0.03-0.07
ECA080F20-2C08 8.00 8.00 20.00 63.00 2 55.0 5.0 C • 0.03-0.09
ECA100F22-2C10 10.00 10.00 22.00 72.00 2 55.0 5.0 C • 0.03-0.10
ECA120F25-2C12 12.00 12.00 25.00 83.00 2 55.0 5.0 C • 0.04-0.11
ECA160F32-2C16 16.00 16.00 32.00 92.00 2 55.0 5.0 C • 0.05-0.13
ECA200F38-2C20 20.00 20.00 38.00 104.00 2 55.0 5.0 C • 0.05-0.13
ECA250F45-2C25 25.00 25.00 45.00 121.00 2 55.0 5.0 C • 0.05-0.13
• For user guide, see pages 177-184
(1) Number of flutes
(2) Maximum ramping angle
(3) C-Cylindrical
